Point-supported glass façades create a striking balance between openness, structure, and architectural restraint. Their transparency depends on more than attractive glass panels or polished fittings. Every hole, bolt, spacer, and supporting point must work within carefully defined tolerances. A small positional error can produce visible stress around a fixing, uneven joints, or difficult installation on site. This is why the question “why is precision engineering critical for point-supported glass facades” deserves serious attention from designers, fabricators, contractors, and building owners.
Precision affects safety, appearance, durability, and maintenance. Engineers must coordinate glass thickness, drilled holes, countersunk fittings, wind pressure, thermal movement, and the supporting steel system. A few millimetres can change the load path. It can also force installers to enlarge a connection, introduce unwanted pressure, or replace an expensive panel. Field experience shows that early digital coordination prevents many late surprises, especially where glass meets stone, steel, or waterproofing membranes. Still, precision is not perfection. Site conditions rarely match drawings exactly. Measurements can be incomplete, and assumptions may survive too long. That uncomfortable gap deserves attention.
The following seven reasons explain why controlled precision matters throughout the façade process. They connect engineering calculations with real installation decisions. They also consider visual quality, inspection, long-term movement, and responsible maintenance. Good results require more than advanced software. They require verified dimensions, qualified specialists, clear records, and the willingness to question an apparently finished detail.

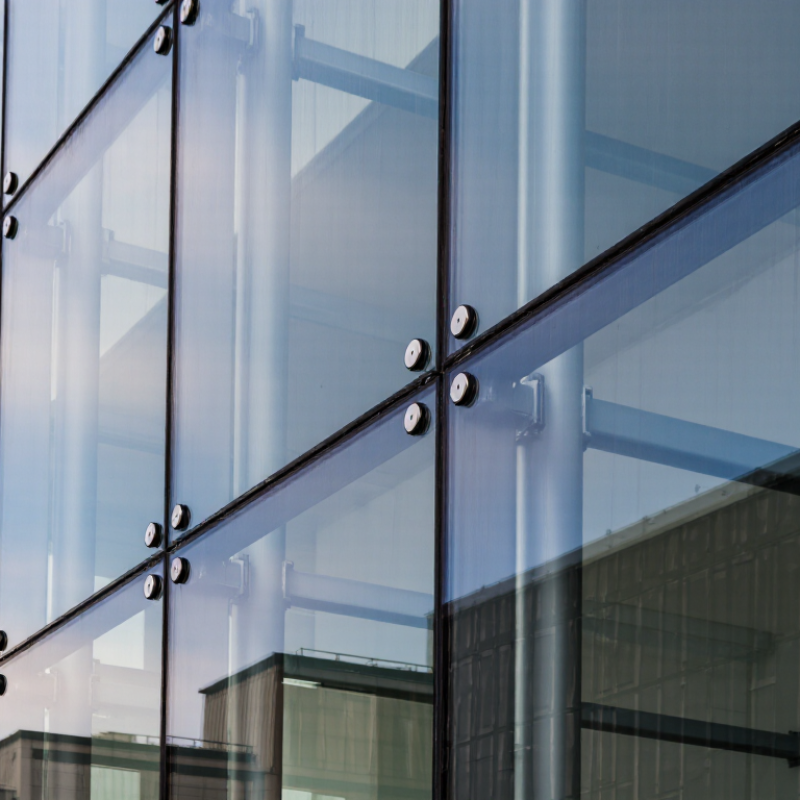

Point supported glass uses small, visible connections instead of continuous frames. Each pane is drilled or fitted with embedded hardware. Bolts, spider fittings, glass fins, or tension cables then transfer loads toward the supporting structure.
The load path must remain clear. Wind pressure reaches the glass, travels through the fittings, and moves into beams, fins, or cables. Engineers check hole positions, edge distances, glass thickness, deflection, and local stress. ASTM E1300 provides recognized procedures for evaluating glass strength under specified loads. Structural design also commonly references ASCE 7 wind-load criteria. Small errors matter.
Precision affects more than appearance. A misplaced hole can increase edge stress. Uneven fittings may force one connection to carry excessive load. Excessive support movement can create pressure around the bolt and cause cracking. Field measurements, calibrated tools, and controlled installation records reduce these risks. This is practical knowledge, not just drafting theory.
The International Energy Agency reports that buildings consume about 30% of global final energy. Better daylighting can support lower lighting demand, but oversized glass may increase cooling loads. The structure and envelope must work together. The real lesson is uncomfortable: accurate drawings do not guarantee accurate installation. Tolerances still need review on site.
Point-supported glass uses discrete fittings, such as bolts or spider-type connectors, to transfer loads from glass panels to a supporting structure. The following table summarizes why dimensional and installation accuracy is essential.
| No. | Precision Area | Relevant Data or Engineering Fact | Why Precision Matters | Typical Verification Method |
|---|---|---|---|---|
| 1 | Load-path alignment | Point fittings transfer concentrated forces through drilled holes, sleeves, bolts, and supporting brackets rather than through a continuous frame. | Even a small offset can introduce unintended eccentricity, secondary bending, or uneven contact pressure at the glass connection. | Survey and dimensional check Confirm fitting centers, bracket locations, and structural support points against the approved drawings. |
| 2 | Hole location and geometry | Glass holes create local stress concentrations. Hole diameter, edge distance, countersink shape, and surface condition must match the engineered connection. | Incorrect geometry can reduce the effective load-bearing area and increase the risk of local cracking around the opening. | Template inspection Check hole coordinates, diameter, countersink, edge quality, and compatibility with the fitting assembly. |
| 3 | Glass type and strength | Heat-treated glass is commonly specified for point-supported applications because its bending strength is generally higher than that of annealed glass. Heat treatment does not eliminate the need for correct detailing. | Precision ensures that the designed glass type, thickness, heat treatment, and connection detail work together as one load-resisting system. | Document review Verify glass thickness, heat-treatment designation, interlayer specification, and test or certification records. |
| 4 | Thermal movement allowance | Soda-lime glass has a coefficient of thermal expansion of approximately 9 × 10−6/°C. A 1 m glass length subjected to a 50°C temperature change may change by about 0.45 mm. | Connections that are too tight can restrain movement and transfer unwanted stresses into the glass, fittings, or sealants. | Clearance measurement Measure designed gaps, sleeves, washers, and movement joints before final tightening and sealing. |
| 5 | Fastener torque and contact pressure | Point connections require controlled contact between the fitting, gasket, sleeve, and glass. Excessive tightening can create local compression; insufficient tightening can allow movement or water entry. | Consistent torque and correctly seated components help prevent point damage, slippage, rattling, and uneven load distribution. | Controlled installation Use specified torque procedures, calibrated tools, compatible gaskets, and a documented tightening sequence. |
| 6 | Panel flatness and deflection | Glass panels deflect under wind, snow, live, and self-weight effects. The magnitude depends on span, thickness, support arrangement, material properties, and loading. | Accurate support positions allow the panel to deflect as designed without binding against fittings, adjacent panels, or edge restraints. | Alignment and movement check Inspect panel planes, joint widths, support seating, and clearance under the design load assumptions. |
| 7 | Weather sealing and visual quality | Point-supported façades typically rely on carefully arranged joints, gaskets, sealants, drainage paths, and aligned fittings rather than a continuous perimeter frame. | Accurate joint geometry improves water management, reduces air leakage risk, and creates a consistent appearance across the glazing field. | Final quality inspection Check joint continuity, sealant adhesion, drainage openings, fitting alignment, surface cleanliness, and visible tolerances. |
Engineering note: The values shown are general technical references. Final glass thickness, connection dimensions, tolerances, clearances, and allowable stresses must be determined by the project structural engineer and applicable building standards.
Point-supported glass uses small visible connections instead of continuous frames. Bolts, spider fittings, fins, or cables transfer loads to the structure. The load path must stay clear.
Wind pressure reaches the pane first. It then moves through drilled holes and fittings into beams, fins, or cables. Engineers check stress, deflection, thickness, and edge distances.
A misplaced hole can increase stress near the glass edge. It may also shift the panel or tighten the joint. Small errors matter.
They should check hole centers, edge distances, diagonals, panel thickness, and support elevations. Actual site conditions can differ from drawings. Measure twice.
Controlled drilling, polished holes, calibrated tools, and dimensional inspections improve consistency. Inspection records should follow each panel. Records are useful.
Uneven fittings can make one connection carry too much load. Support movement may press against a bolt and cause cracking. The result is sometimes delayed.
No. The underlying structure may vary from the design. Weather, handling, and unclear details can also create problems. This gap deserves review.
Build a full-size mock-up before production. Record every field dimension and use independent inspections. Keep adjustment slots where engineering allows. It is not foolproof.
Point-supported glass facades rely on carefully positioned panels, fittings, and structural connections rather than conventional framing. Because each panel transfers forces through specific support points, even small dimensional errors can affect alignment, joint consistency, and installation fit. Accurate measurements help ensure that glass panels meet their intended positions without excessive adjustment, reducing installation stress and improving the finished appearance. This explains why is precision engineering critical for point-supported glass facades: it directly influences both visual quality and structural reliability.
Precision also plays an essential role in safety, load distribution, and long-term stability. Correctly calculated support locations allow wind, dead, and environmental loads to move through the system in a controlled manner, while properly manufactured components help prevent uneven pressure and localized stress. Consistent fabrication, dimensional inspections, calibrated equipment, and careful installation checks work together to maintain quality from production through completion. In this way, precision supports a durable, stable, and dependable glass facade.
