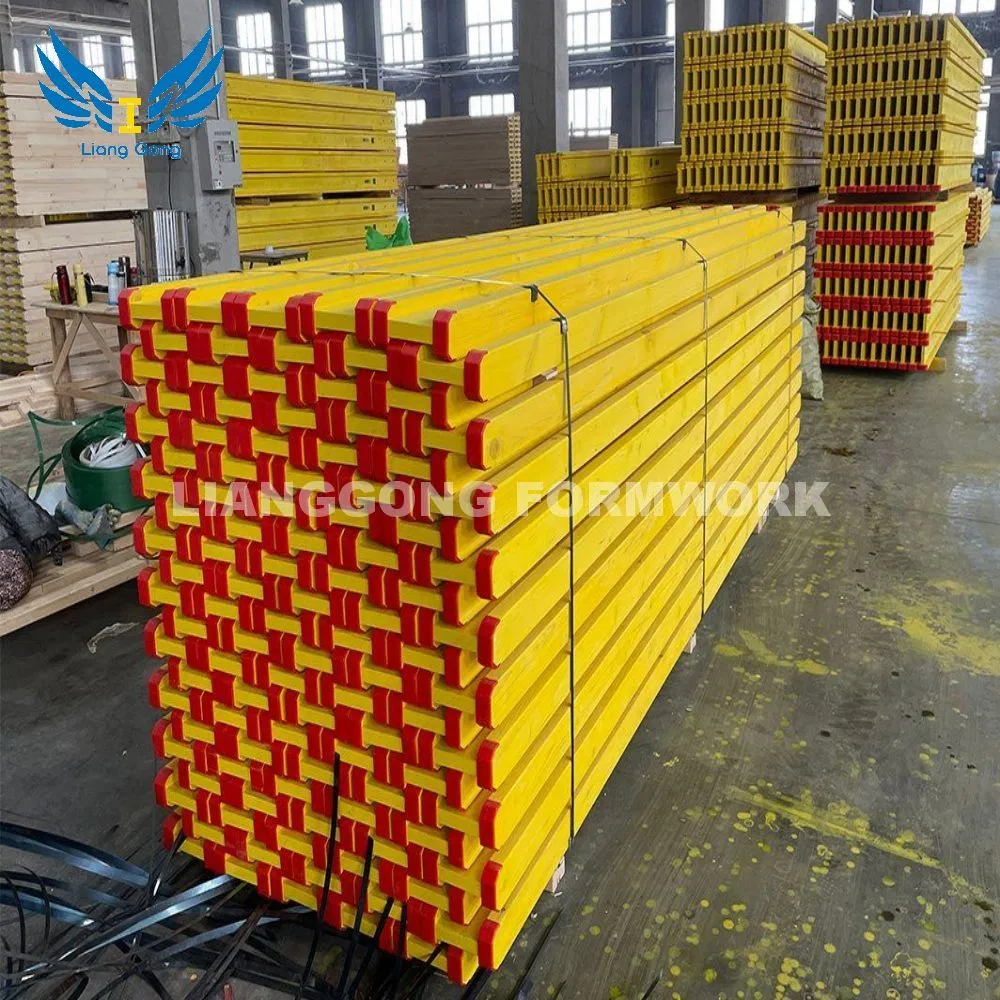

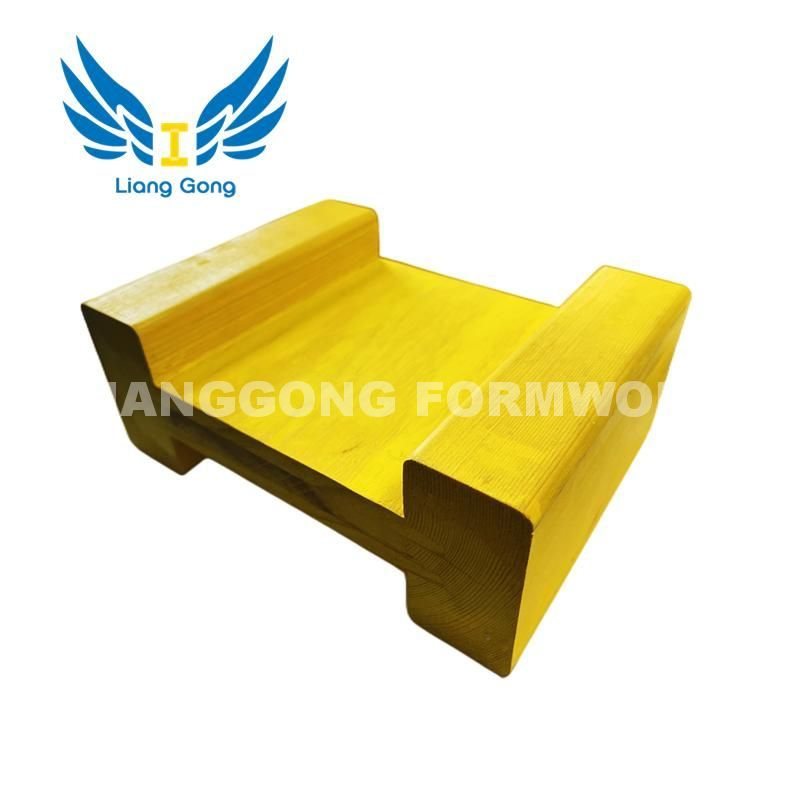

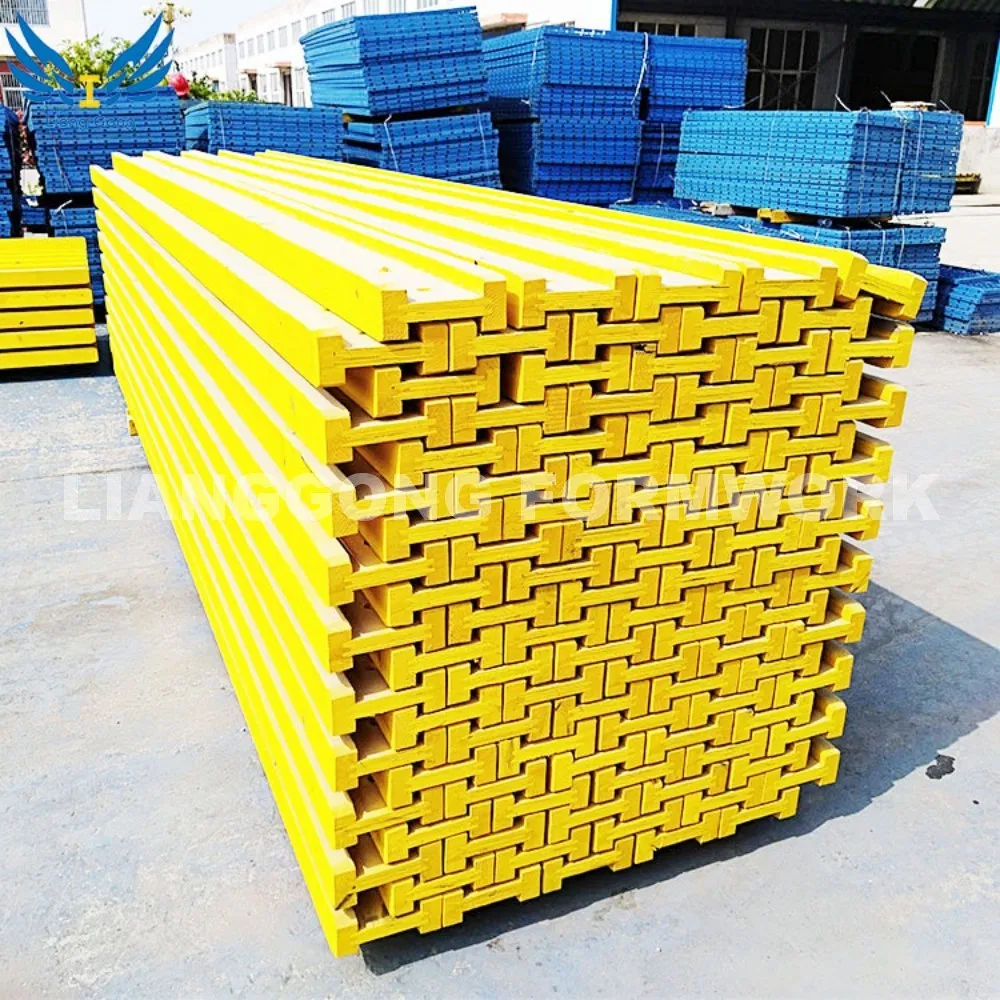

Lianggong Hot-Sale Solid H20 Timber Beam for Walls Slabs and Columns

Customization: Available
After-sales Service: One-Stop Service
Warranty: 1 Year

Product Description

Basic Product Information
Model NO.
H20 Timber Beam
Certification
ISO, CE
Material
Steel Wood
Type
Wall Formwork
Usage
Concrete Panels Shuttering
Capacity
2000 Square Meters/Month
HS Code
7308400000
Origin
Jiangsu, China
Product Description

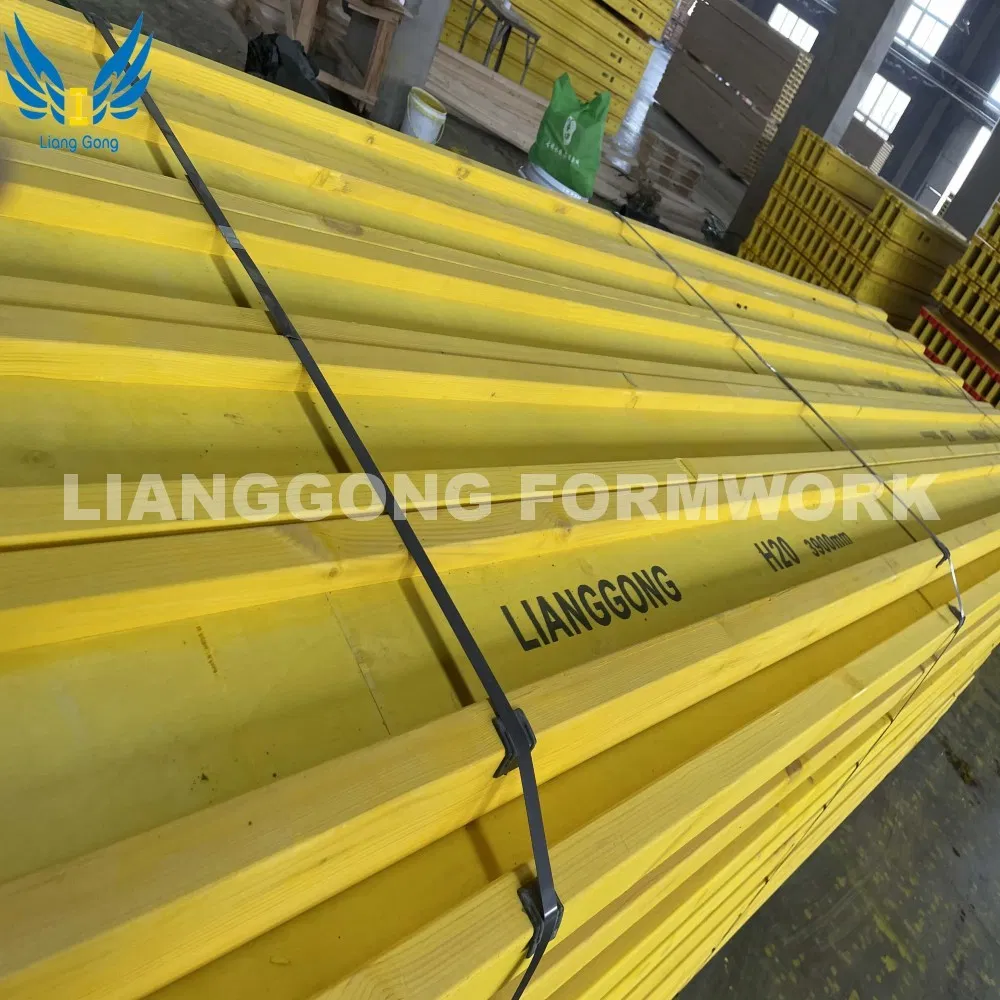

H20 Timber Beam: At present, we have a large-scale woodwork shop and a first-class wood beam production line, with a daily output of 3000m of wooden beams. Standard holes can be punched on both ends of the wood beam. During construction, the wooden beam can be lengthened as per need. We can also customize wooden beams into any length for your specific requirements.

Technical Specifications & Features
  • Flange: Imported solid wood spruce from North Europe
  • Web: Poplar core plywood with Melamine WBP glue
  • Weight: Around 4.5kg/m

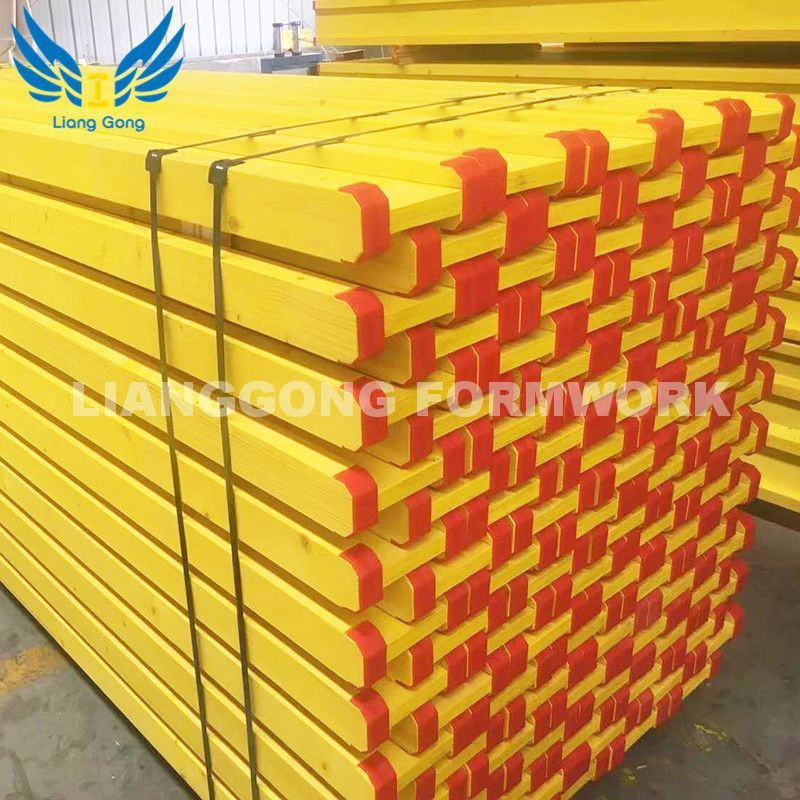

  • Protection: Two ends can be sealed with protective caps to prevent moisture and reduce damage
  • Finish: Yellow waterproof painting
  • Standard: Monitoring as per EN13377 standard

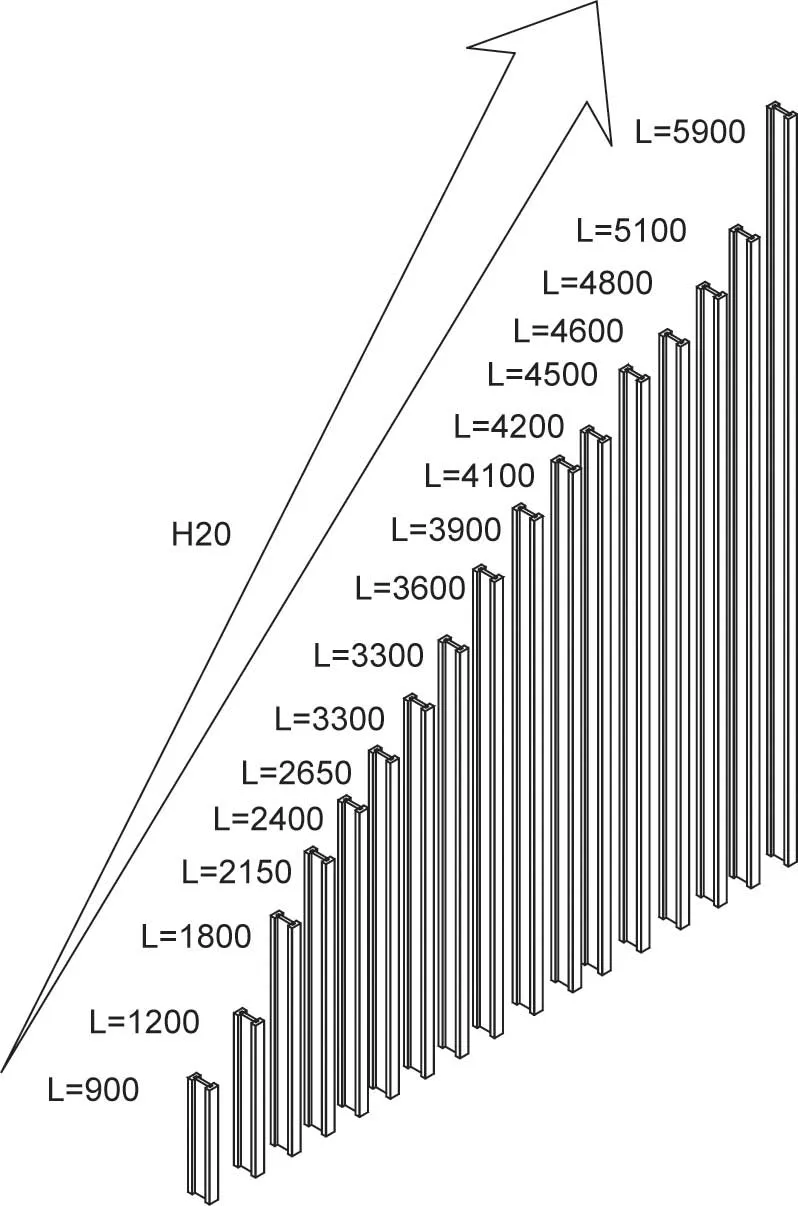

Specification Chart

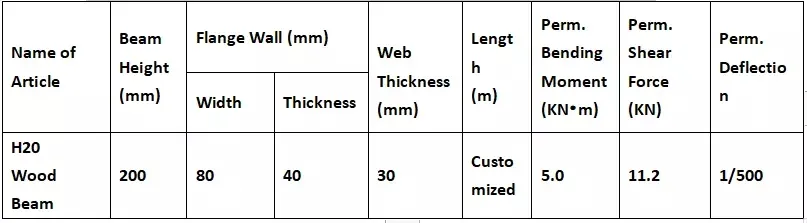

Parameters 1

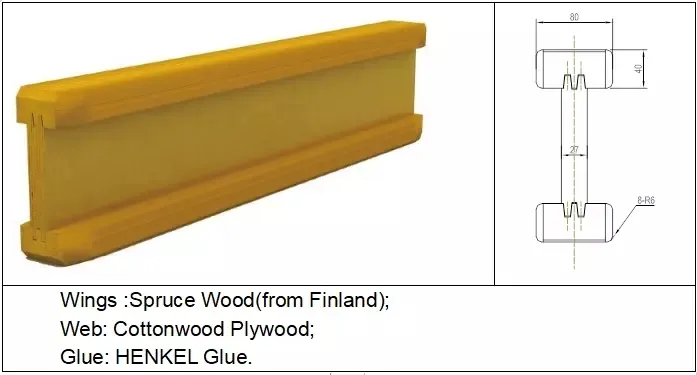

Parameters 2

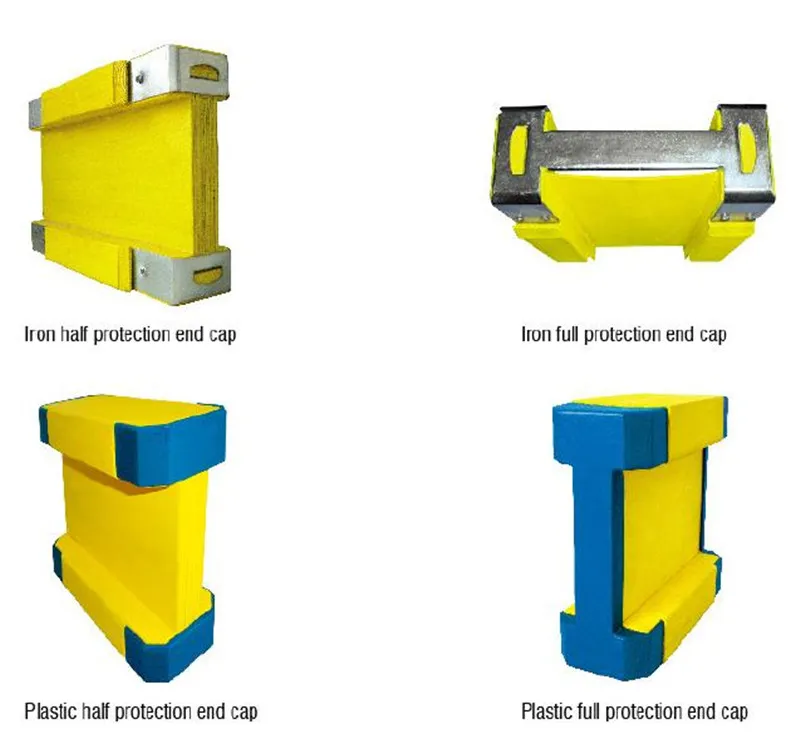

Timber Beam End Protection

In order to protect the timber beam from being damaged and extend the service life, we've designed four types of end caps for your choice.

End Protection Caps
Product Exhibition

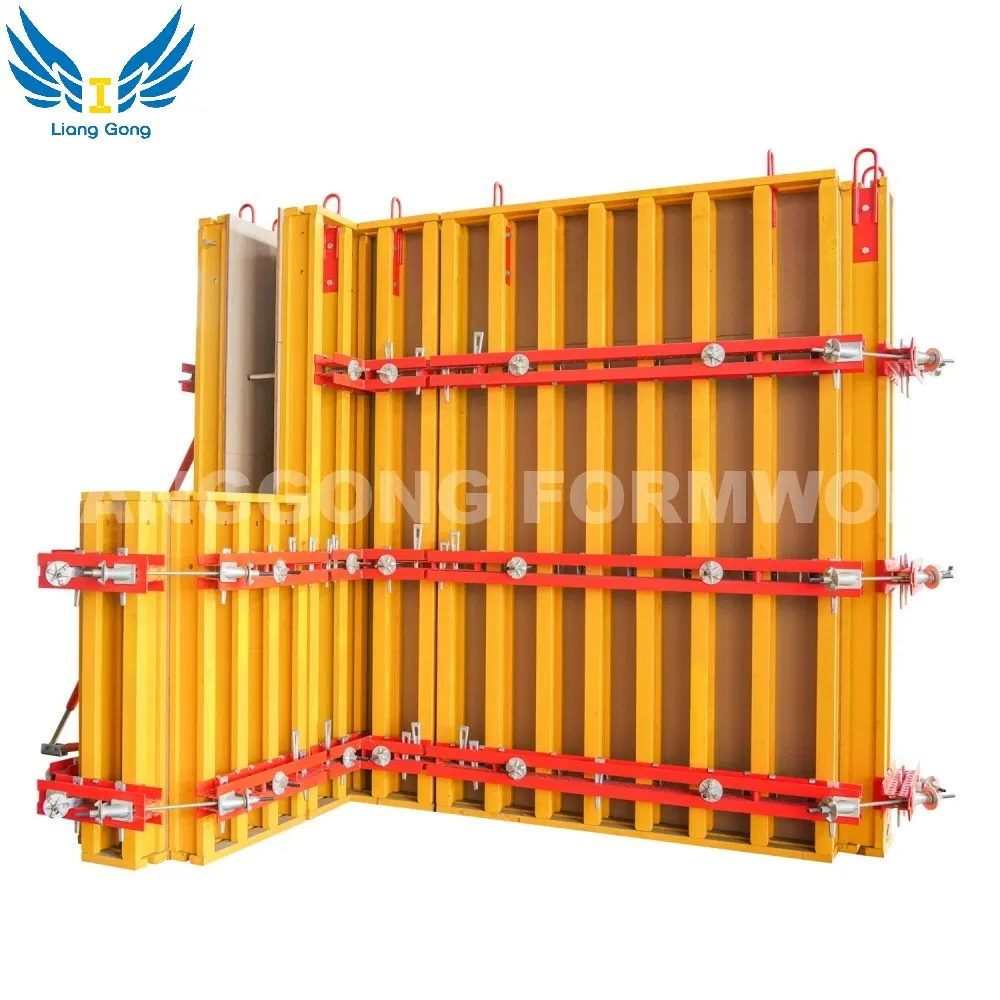

Product Show 1

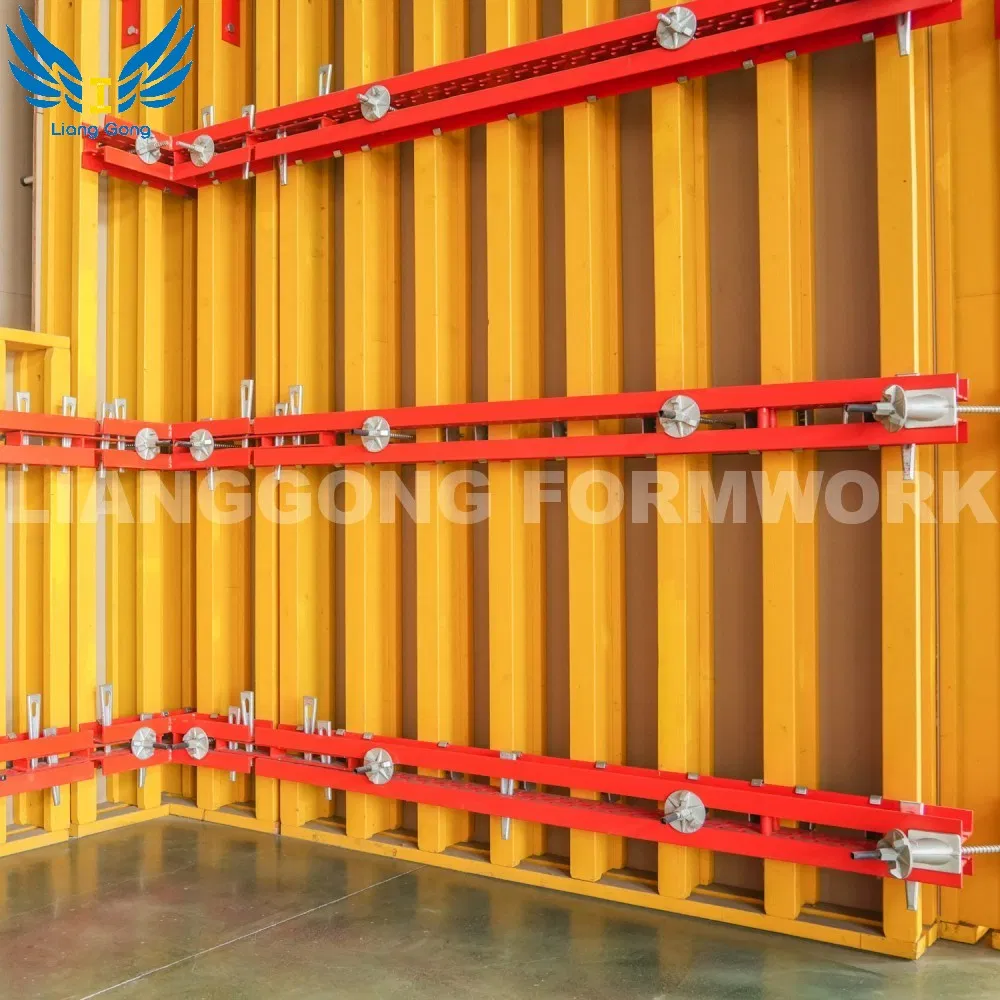

Product Show 2

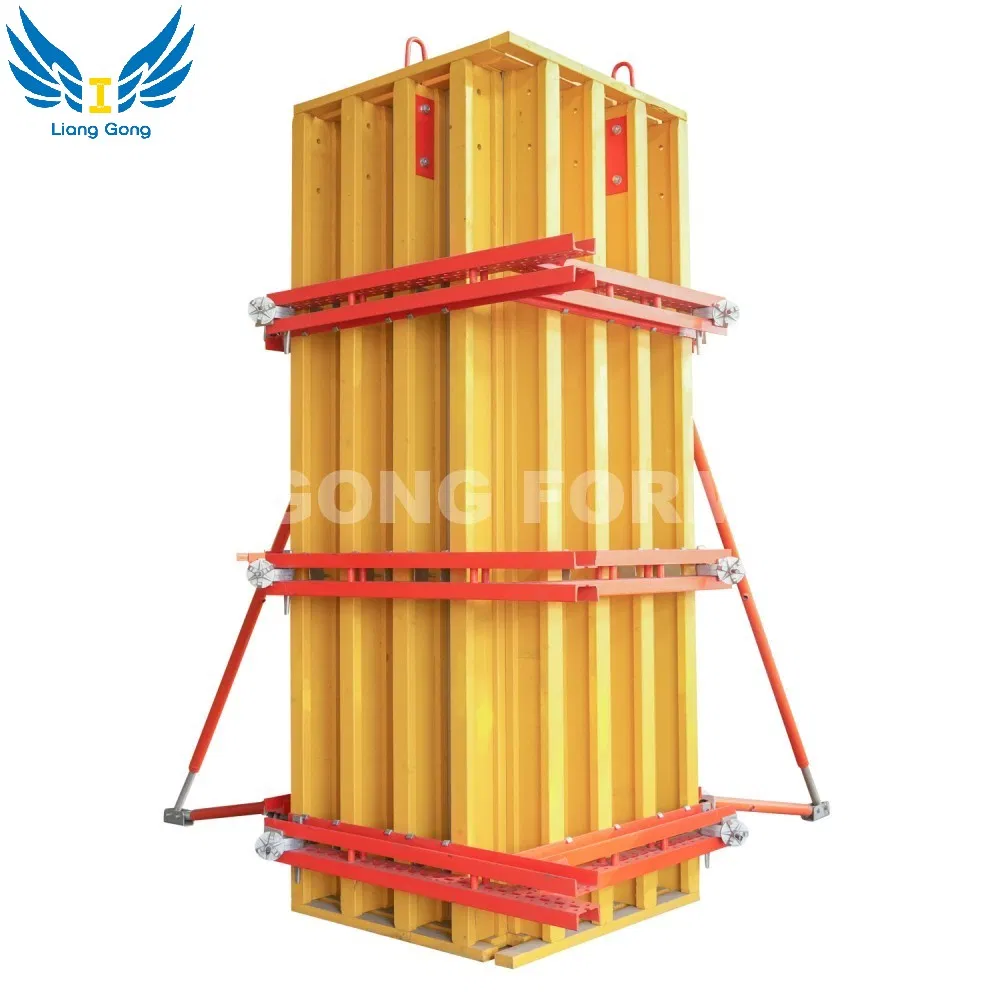

Product Show 3

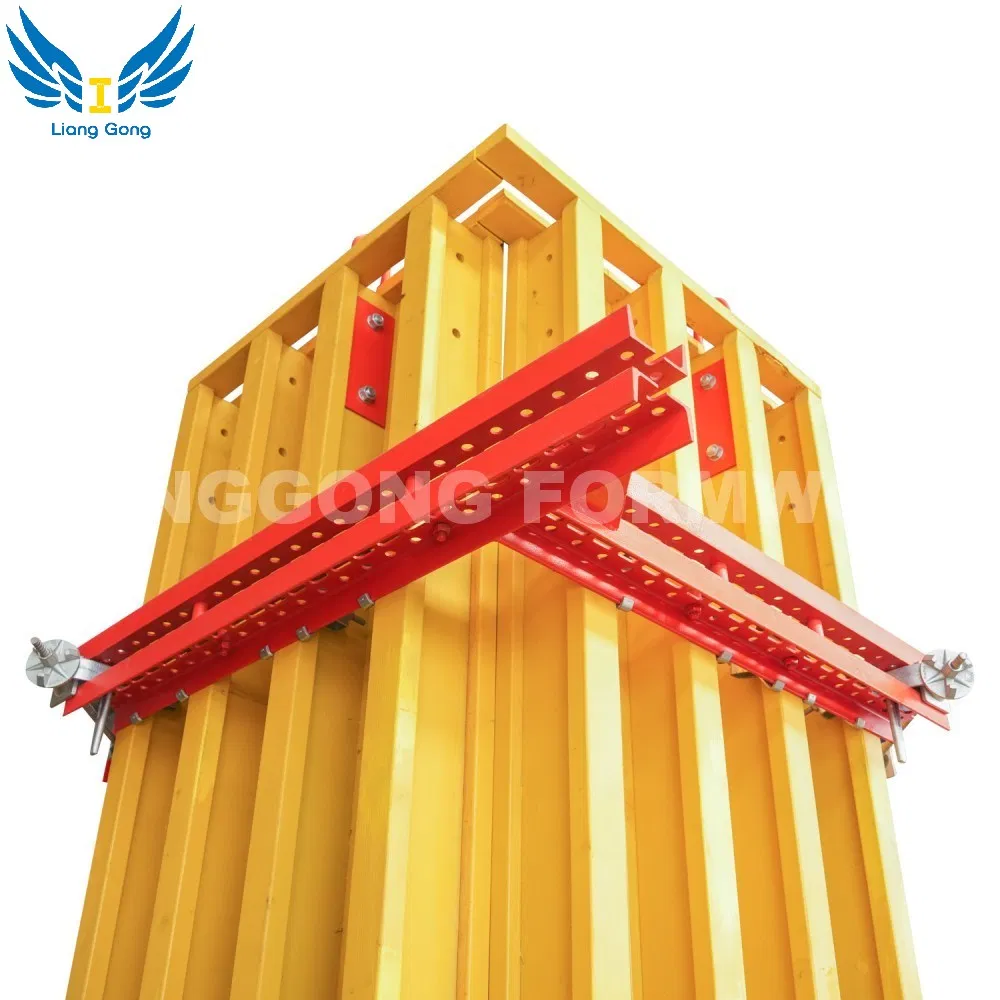

Product Show 4
Packaging & Shipping

Package Details:

  • Loaded container weight: 22 tons to 25 tons.
  • Bundles: Timber beams, steel props, tie rods.
  • Pallets: Small parts in bags then on pallets.
  • Wooden cases: Available on customer's request.
1Production: For full container, normally 20-30 days after down payment.
2Transportation: Depends on the destination port.
3Negotiation: Needed for special requirements.
Our Professional Services

1. Consulting & Design

Offer general ideas for formwork & scaffold systems to fit your project. Custom Auto-CAD proposals available.

2. Manufacture & Inspection

First-class production lines and professional quality teams provide high-standard products and test reports.

3. Packing & Shipment

Standard export packages ensure your goods reach the site quickly and safely.

4. Support

Remote or on-site guidance to ensure customer satisfaction throughout the process.

Profile

We are a pioneer manufacturer mainly engaged in the production and sales of formwork systems & scaffolding. With 11 years of factory experience, we have won high praise from customers both at home and abroad for quality and service.

We have cooperated with top construction companies globally. Our advanced production equipment and proficient employees guarantee better quality and shorter lead times. We offer one-stop services, including customized O E M and O D M solutions.

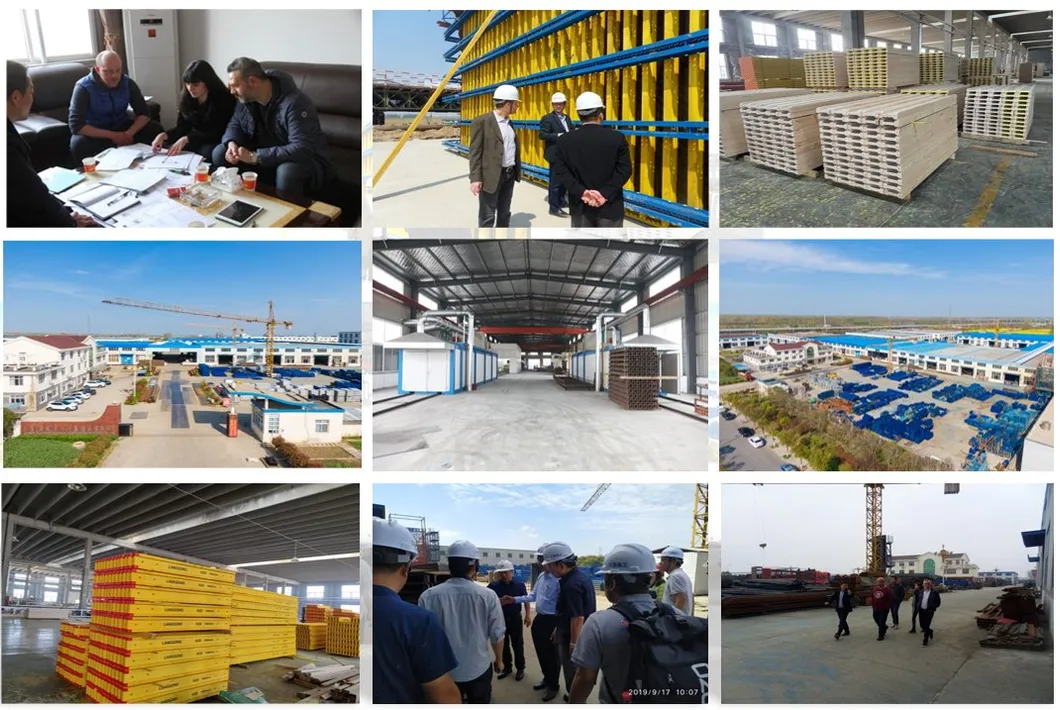

Factory View

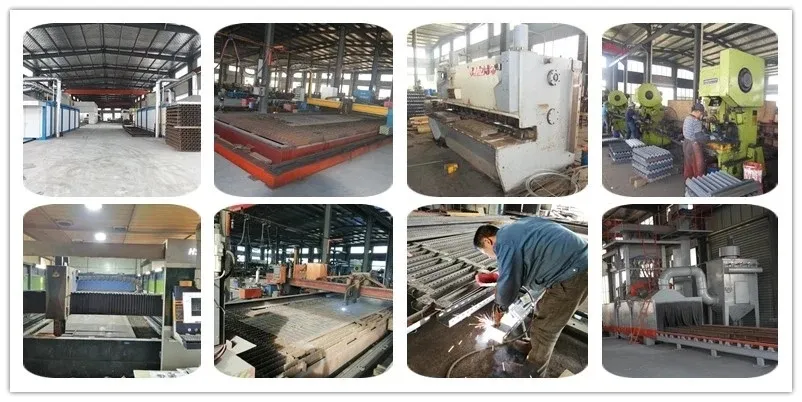

Facility 1
Facility 2
Global Customer Projects
Customer Project 1
Customer Project 2
Customer Project 3
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory with over 11 years of production experience in formwork systems.
How long is your delivery time?
Generally it is 5-15 days if the goods are in stock, or 15-20 days if the goods are not in stock, depending on the order quantity.
Do you provide samples? Is it free?
Yes, we can offer samples free of charge, but we do not cover the cost of freight.
What are your terms of payment?
For payments ≤ 1000 USD, 100% in advance. For payments ≥ 1000 USD, 30% T/T in advance, with the balance due before shipment.
Can the timber beams be customized?
Yes, we can customize wooden beams into any length and punch standard holes according to your construction needs.
How are the beams protected from outdoor elements?
Each beam is coated with yellow waterproof painting and can be fitted with protective end caps to block moisture and increase service life.
