China Prefab/Prefabricated Steel Structure Construction Building for Steel Industrial Workshop/Warehouse/Storage/Farm Shed/Modular House

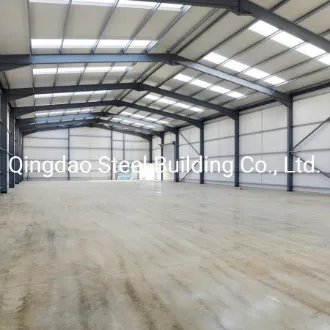

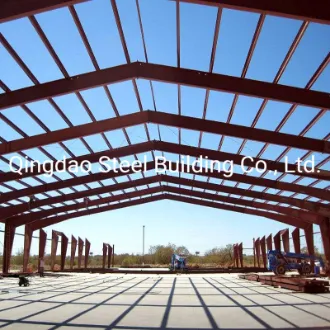

| American Standard Portal Frame | Europe Standard I-Beam Frame | Australia Standard H-Beam Frame |
|---|---|---|
|
Suited for: 1) ANSI/AISC 360-05 Standard compliance 2) High snow and wind load regions |
Suited for: 1) EN1090-1:2009+A1:2011; EN1090-2:2018 standards 2) Europe, UK, and other English, French, and Spanish-speaking regions |

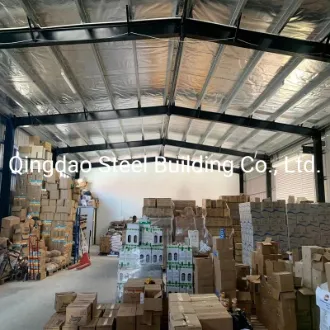

Suited for: 1) AS4100-1998 Standard compliance 2) Australia, New Zealand, and surrounding regions |

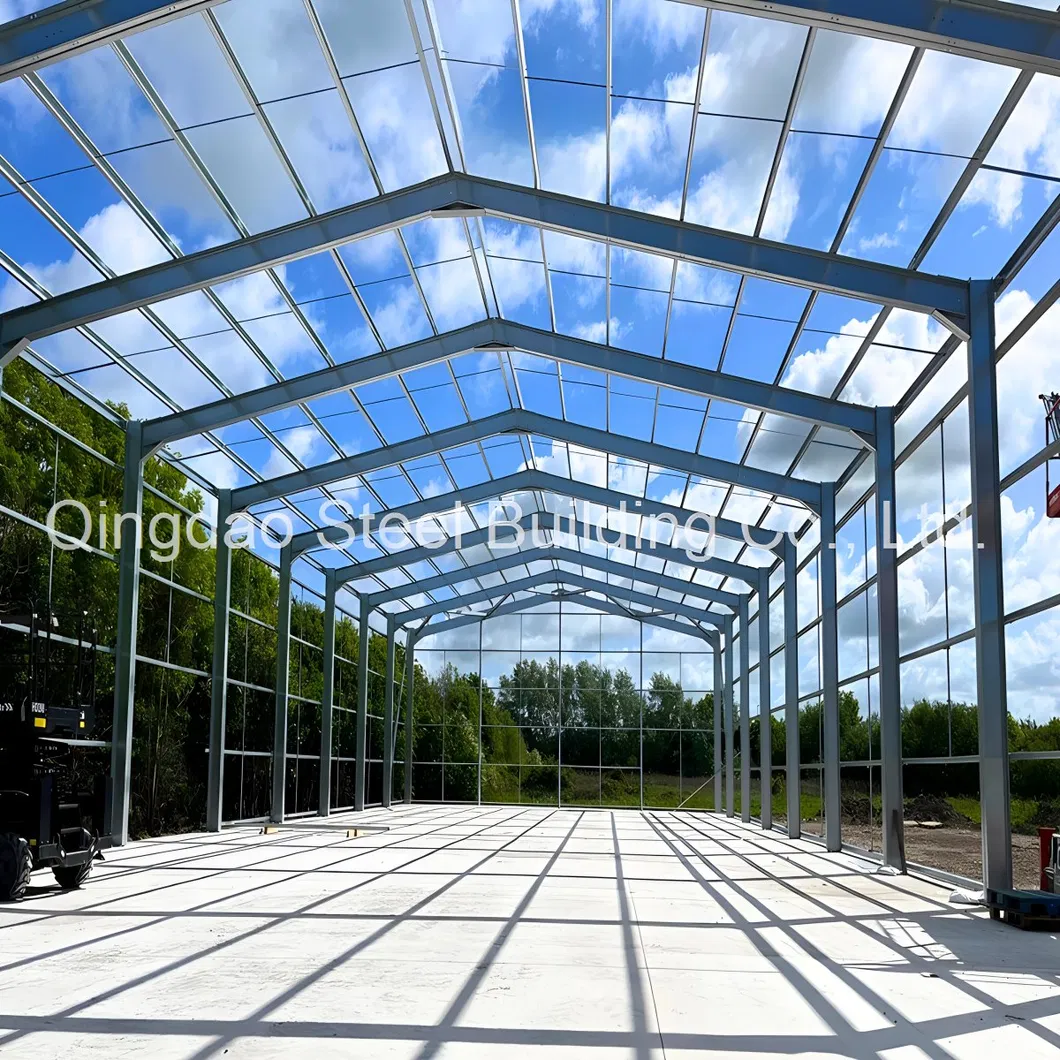

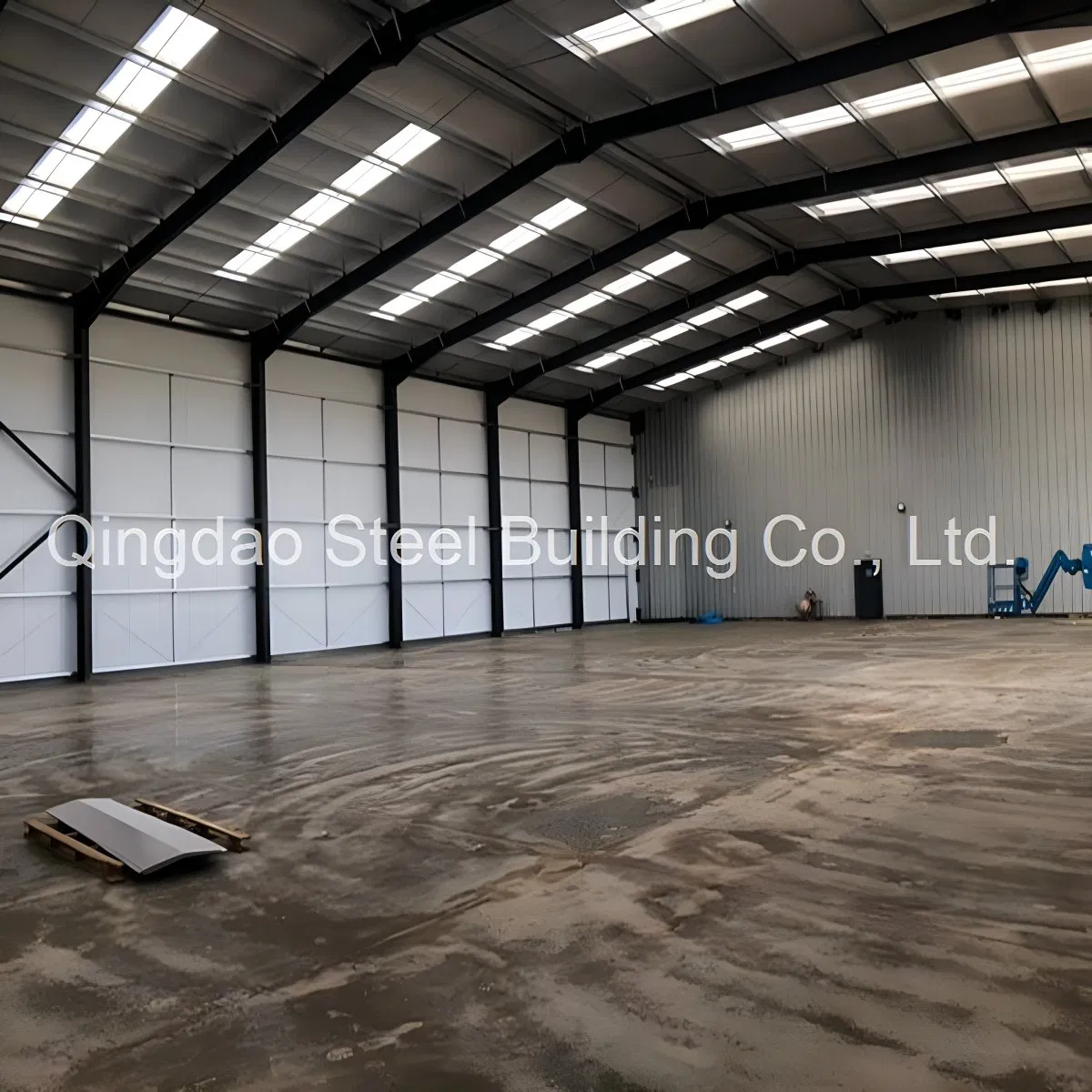

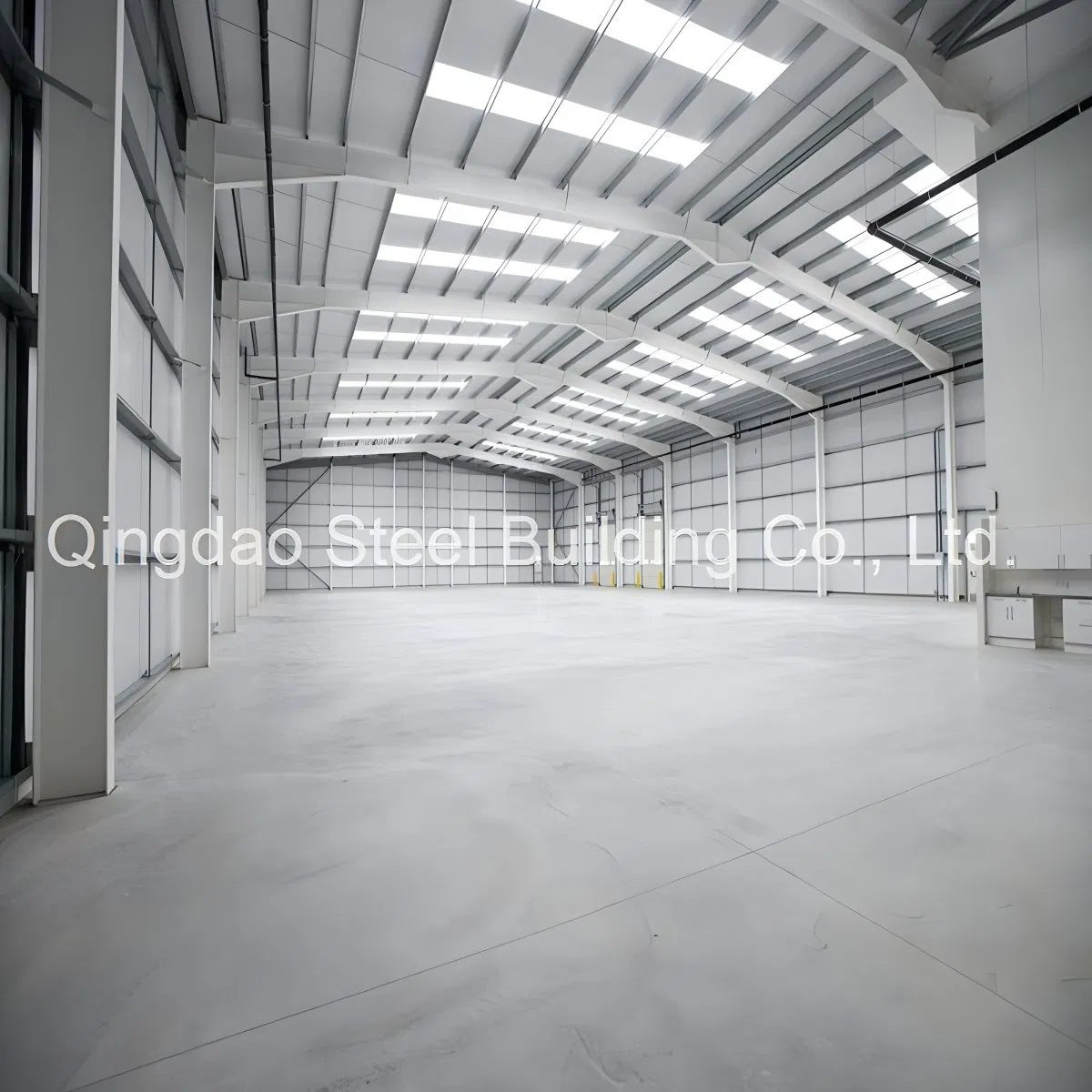

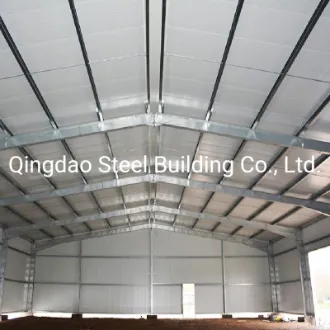

Galvanized Steel Structure Workshop

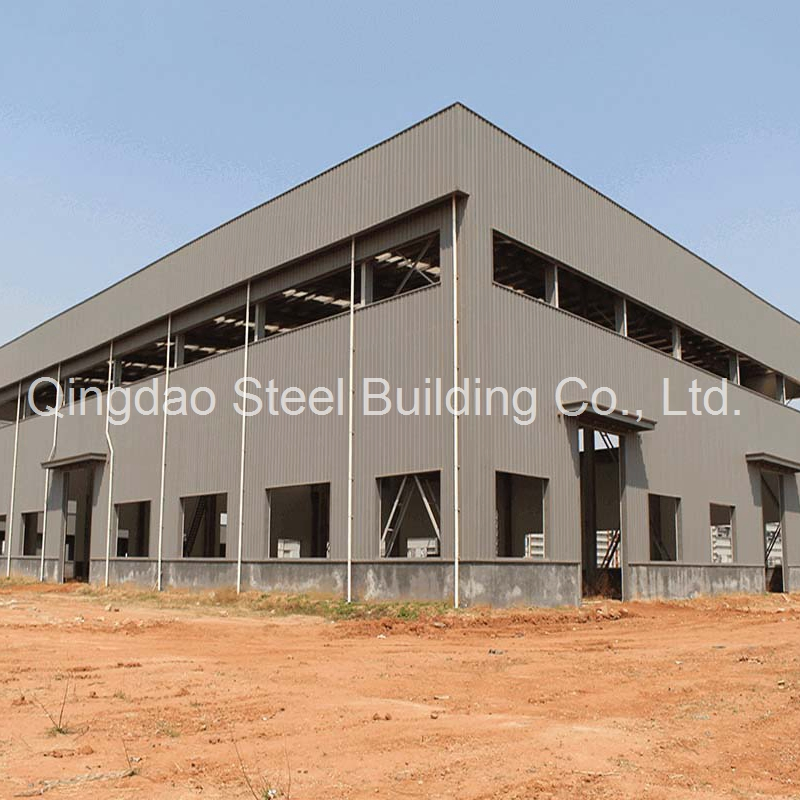

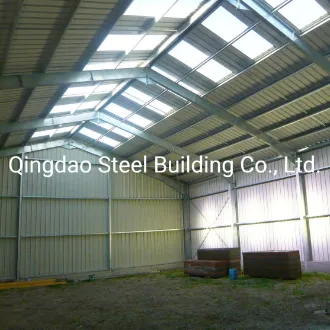

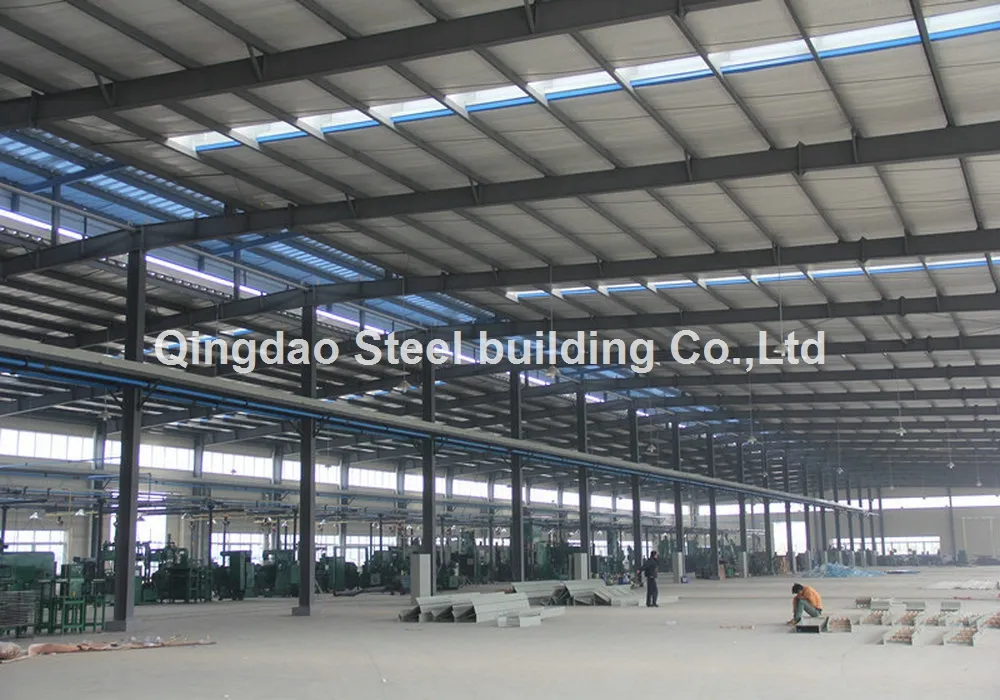

Steel Warehouse for Machinery

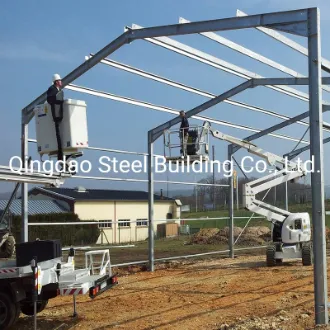

Steel Warehouse for Hay Shed

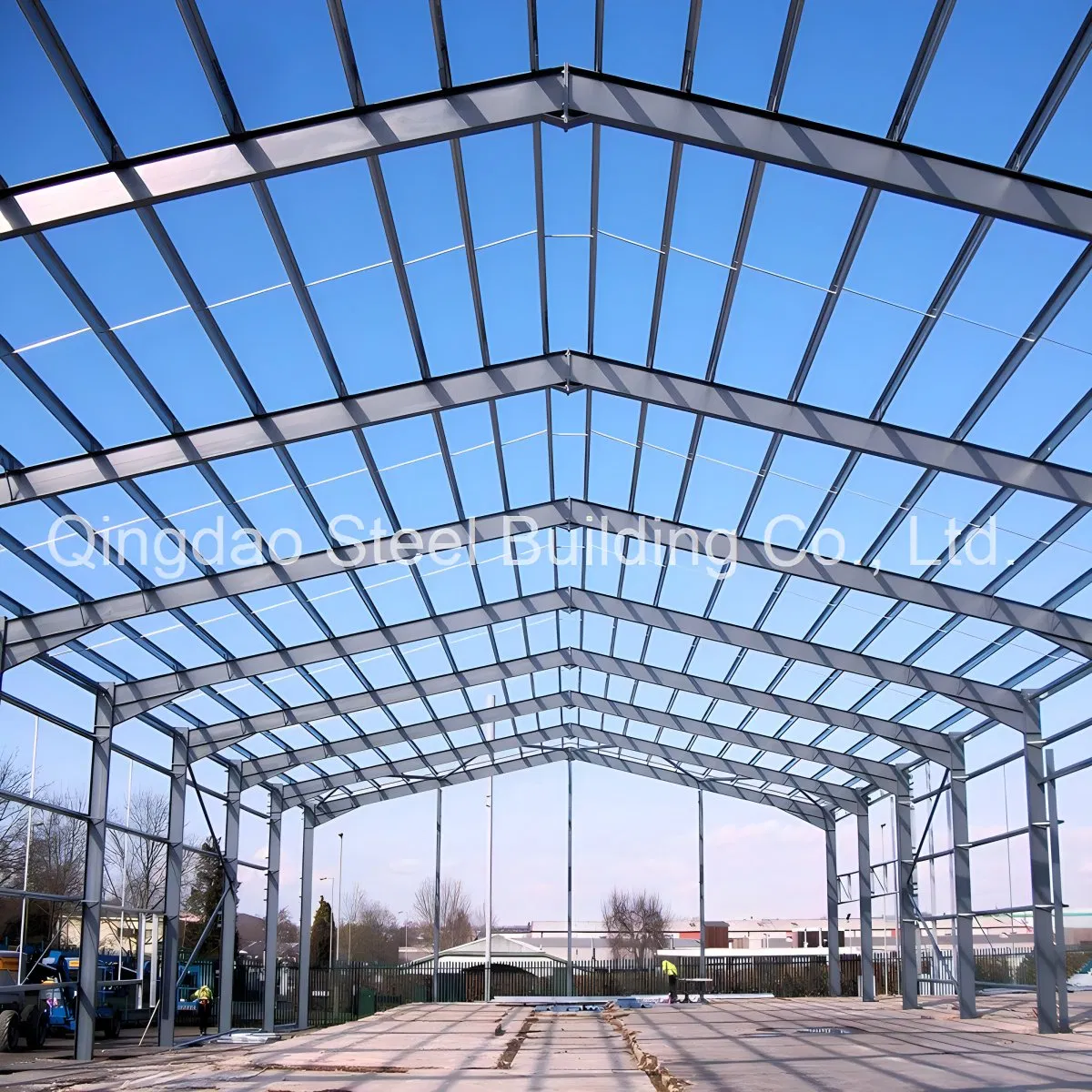

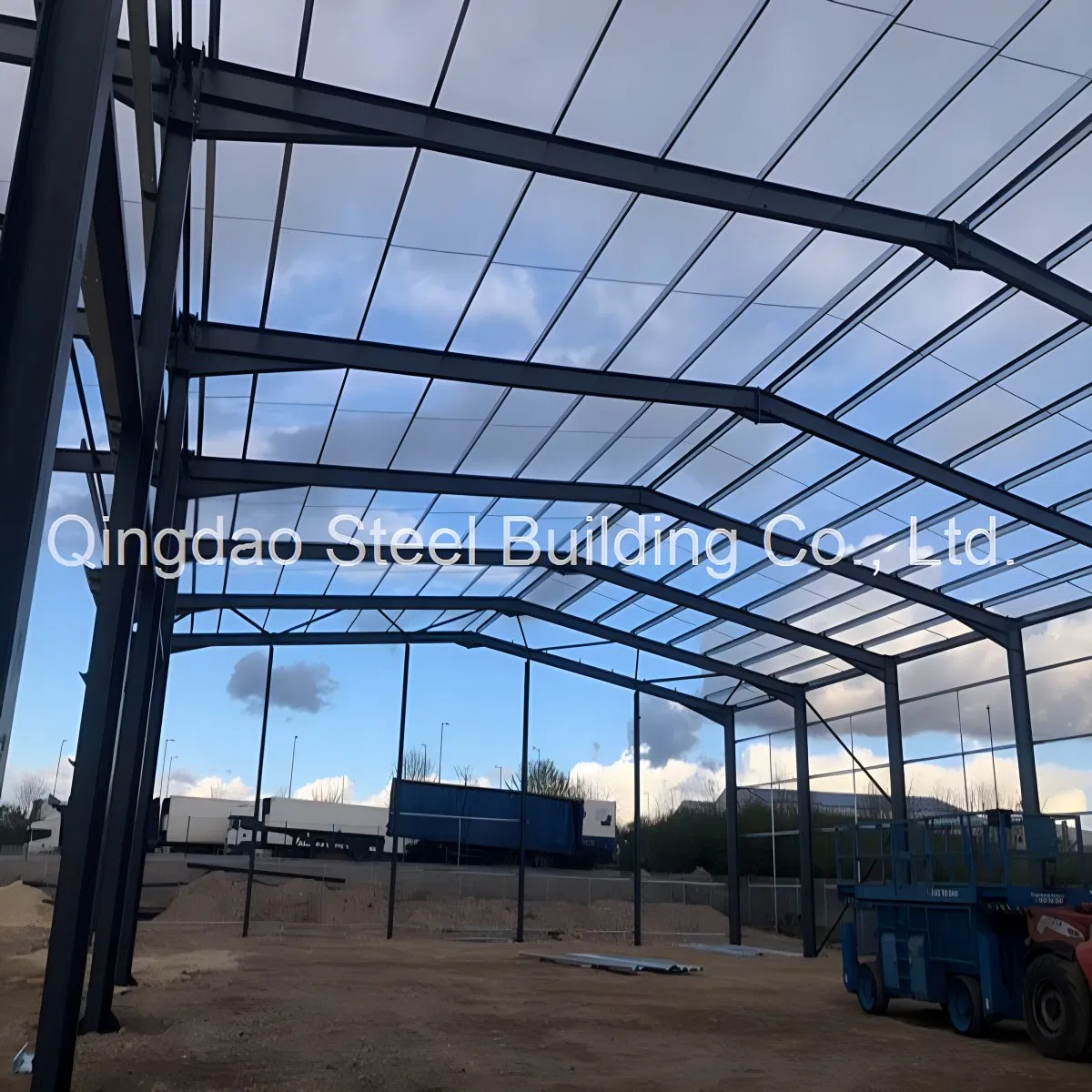

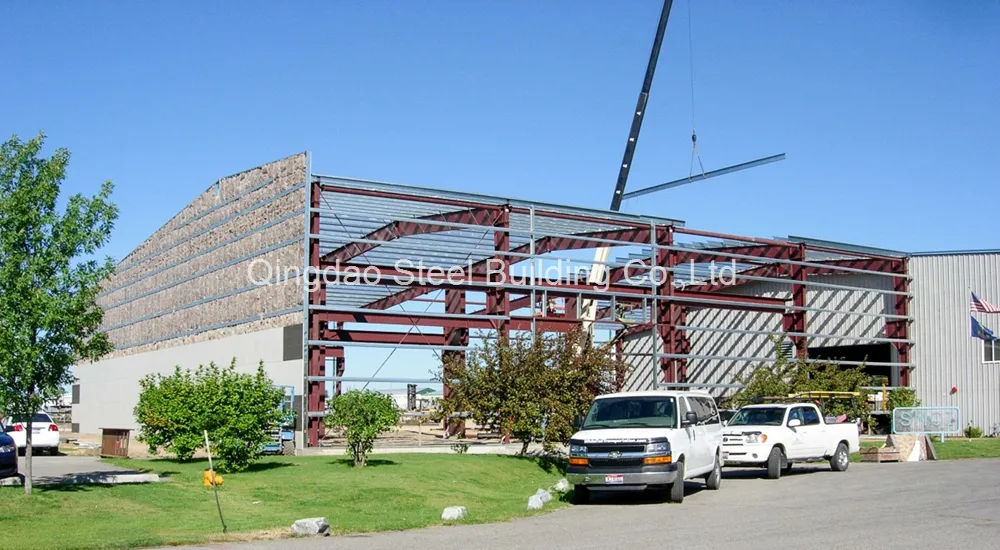

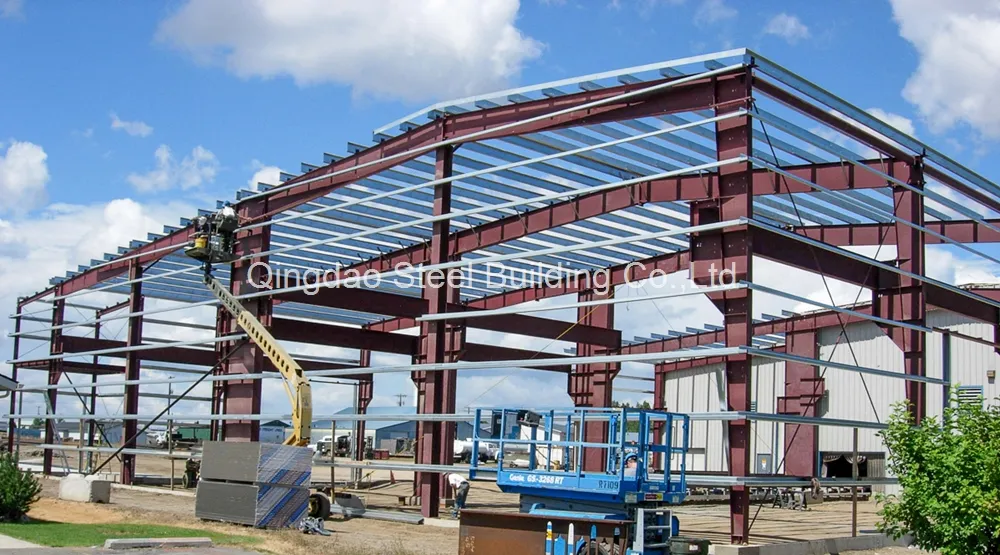

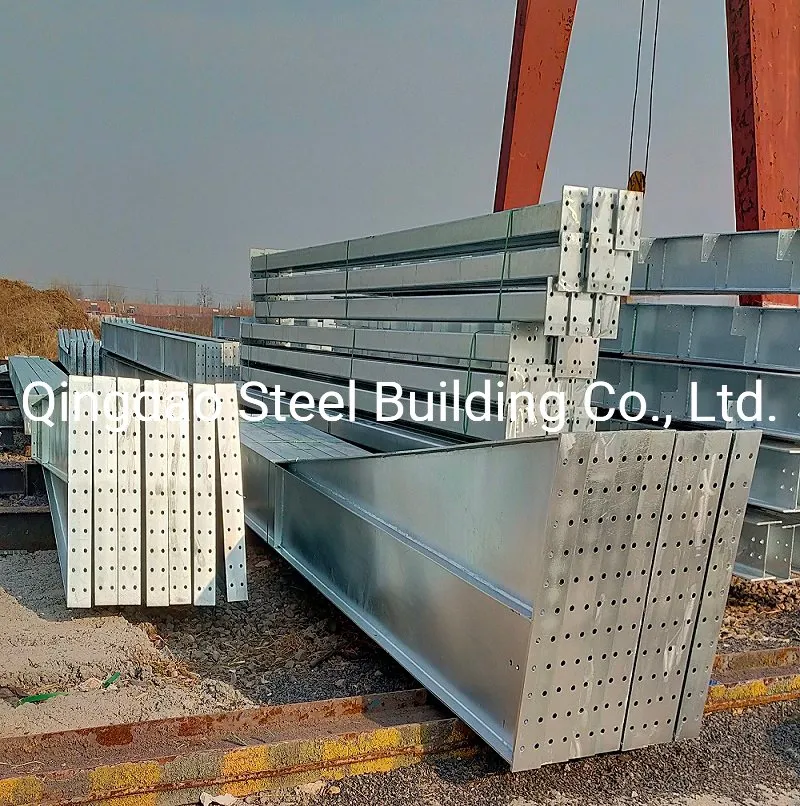

Steel Structure Frame

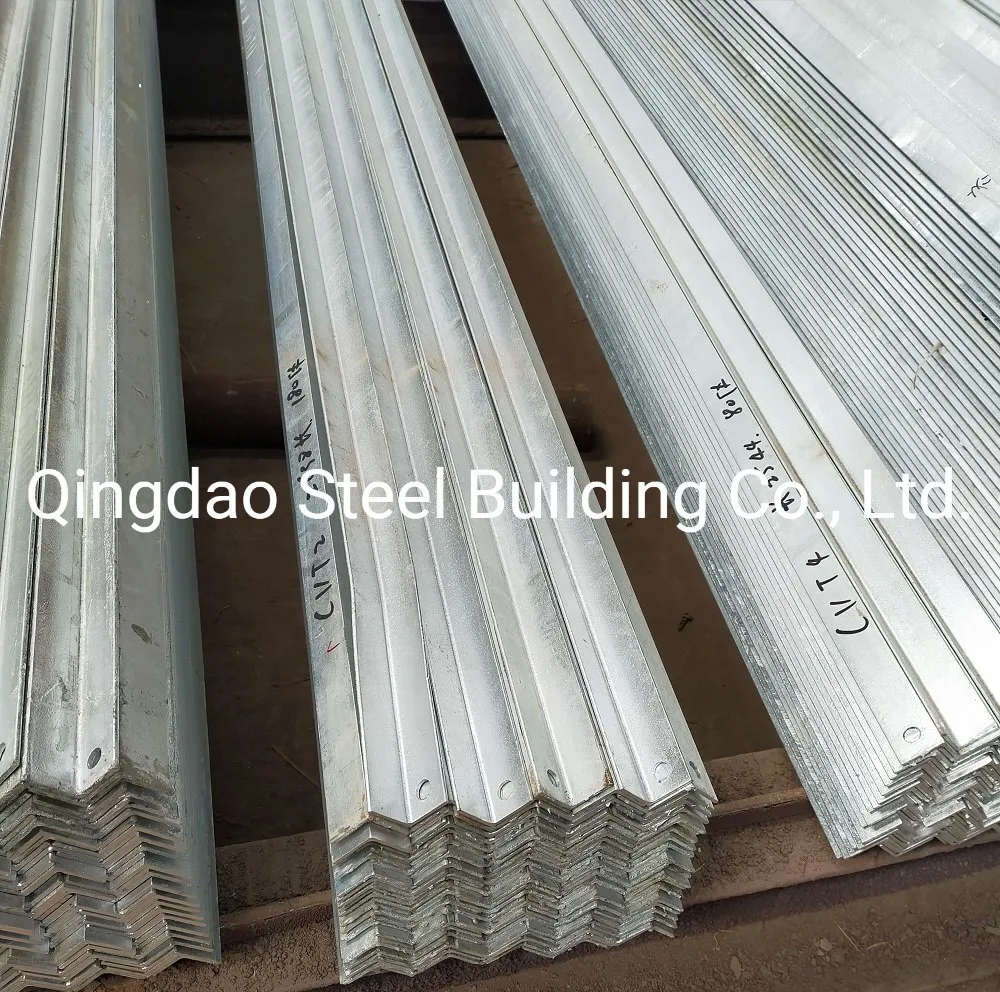

Angle Steel Brace

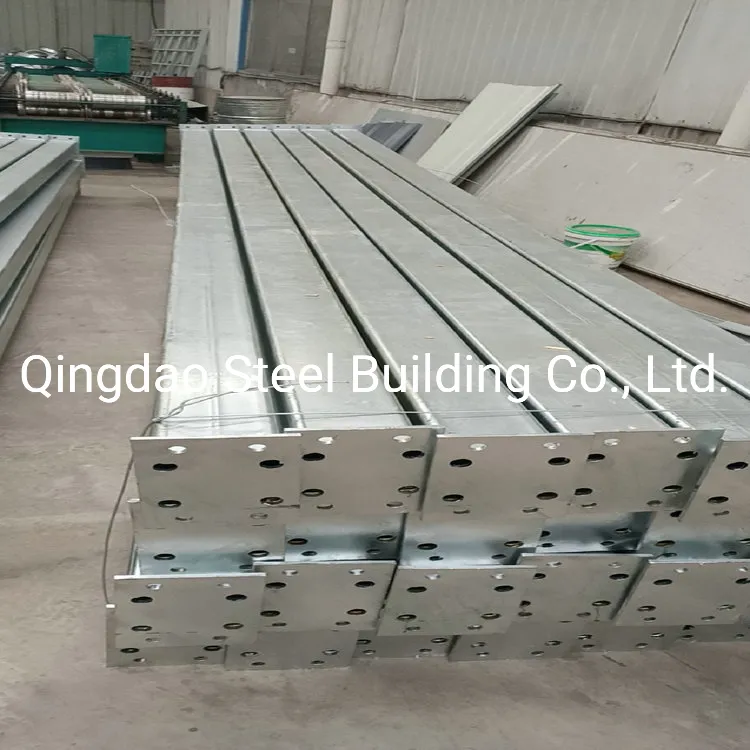

Steel Tie Beam
With over 15 years of international export experience, our custom-engineered steel structures can be designed to satisfy local standards worldwide:

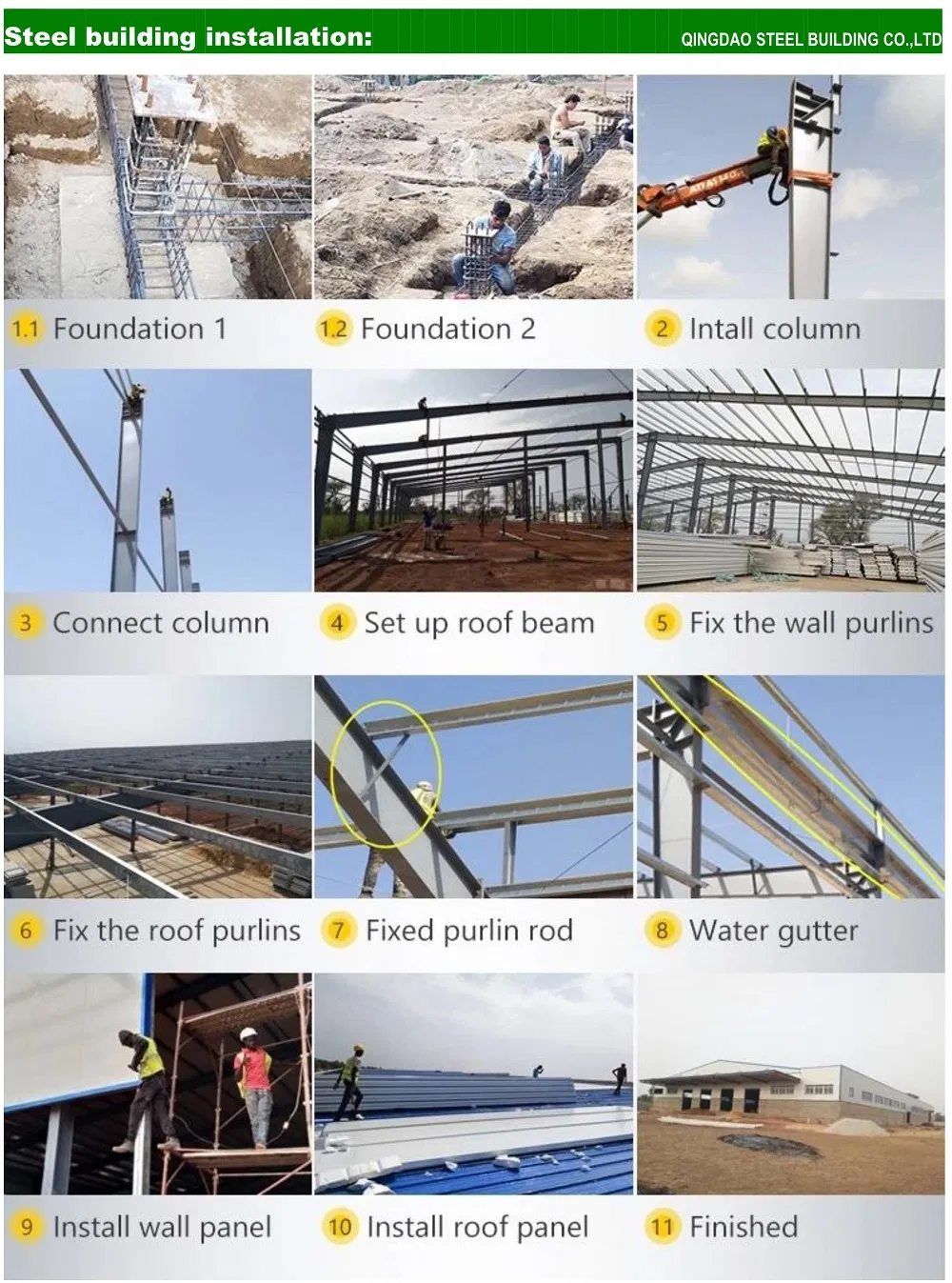

The structural frame workshop is entirely prefabricated. Each component is manufactured in an advanced factory environment and subsequently transferred to the construction site. Elements are bolted together, with walls and roofs fixed to structural purlins and girts utilizing self-tapping fasteners. This configuration guarantees minimal field installation time and dramatically curtails on-site engineering costs. Customers are responsible for site-foundation preparations, after which all primary framing and cover materials are supplied directly.

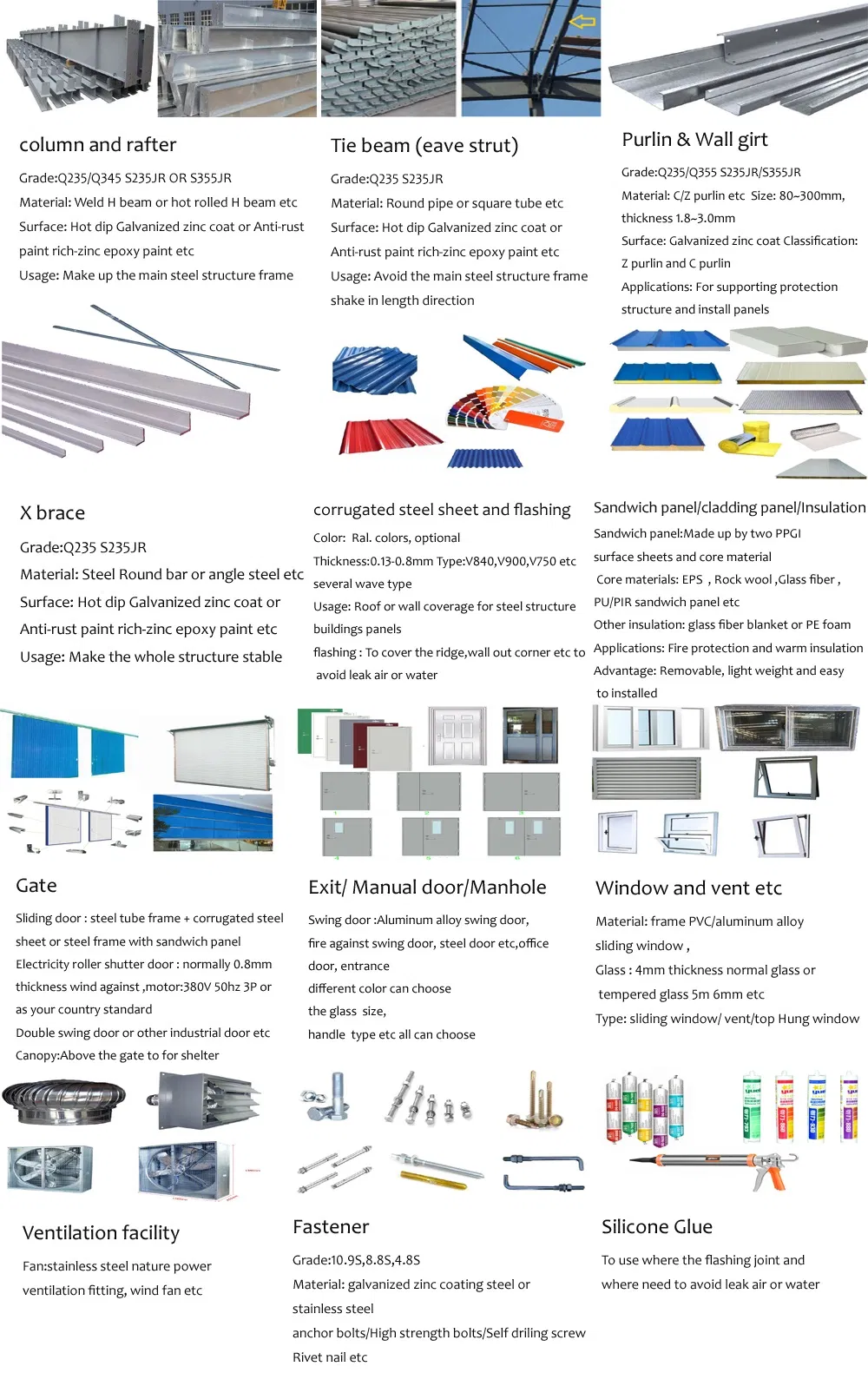

| Item Type | Popular Dimensions | Popular Eave Height | Coverage Selection | Gate Specifications |
|---|---|---|---|---|
| Steel Warehouse | 20m x 30m | 5m | Single corrugated steel sheet | 4m x 4.5m |
| Steel Workshop | 20m x 50m | 6m | Insulated roof with single steel sheet wall | 4.5m x 5m |
| Farm Storage | 16m x 36m | 4m | Single steel sheet or roof cover only | 4m x 3.5m |

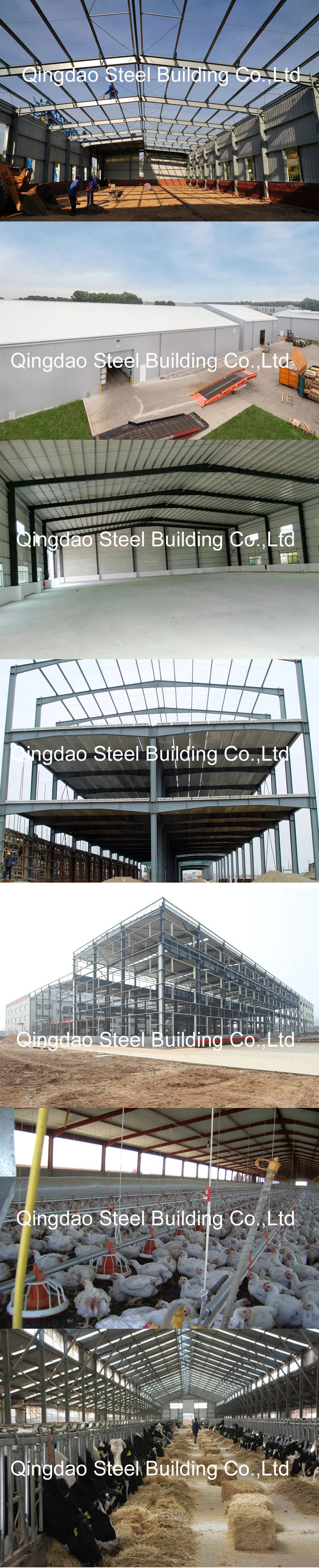

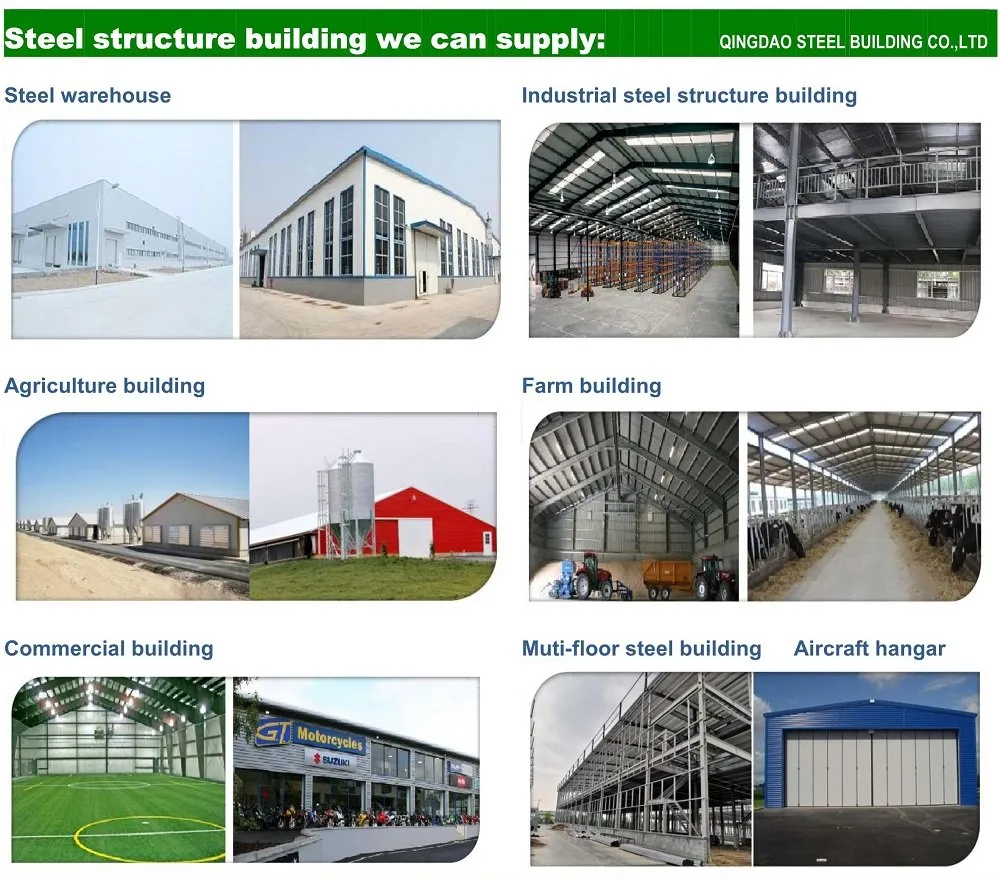

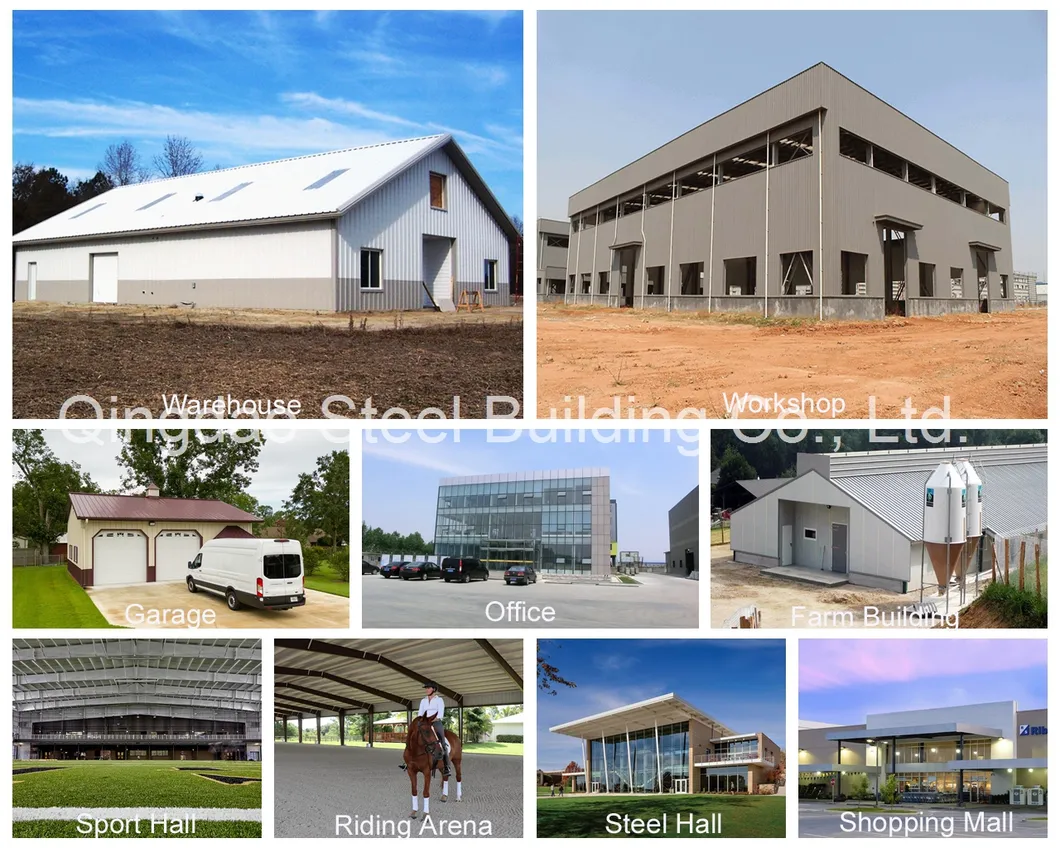

| Application Range | Industrial storage, structural workshops, hangars, commercial logistics complexes, sports halls, agricultural warehouses, cattle barns, chicken farms, and multi-level complexes. |
| Clear Span Width | 6m up to 50m without interior intermediate columns. |
| Eave Height | 2m to 20m |
| Length Capacity | Fully customizable to meet any dynamic requirement. |
| Steel Material Grade | Q345 (S355JR equivalent) or Q235 (S235JR equivalent) structural grade steel. |
| Columns & Rafters | Heavy-duty welded plate sections or hot-rolled H-Beams. |
| Tie Beams | Round structural pipe, hollow structural sections (HSS), or cold-formed channels. |
| X-Bracing Systems | Round steel bar, heavy-duty angle steel, or structural cable. |
| Purlin Framework | C or Z profile purlins in thicknesses ranging from 2.0mm to 3.0mm. |
| Sag Rods | Round steel bar, light angle profile, or specialized purlin connectors. |
| Wall & Roof Cladding | Single skin corrugated profile sheets (0.12mm to 1.2mm) or high-density core sandwich panels (EPS, Rockwool, Glass Fiber, PU) with thicknesses of 50mm, 75mm, 100mm, 150mm, or 200mm. |
| Vehicle Entry Gates | Automatic electrical roller doors, thermal sliding warehouse doors, or standard manual sectional doors. |
| Pedestrian Access | Aluminum alloy, PVC steel, or hollow metal swing doors. |
| Windows | Aluminum or PVC profile sliding windows, top-hung awning vents, or fixed architectural glazing. |
| Surface Coating | Intense grit blasting to Sa 2.5, followed by premium anti-rust zinc-rich epoxy paint coatings or a high-durability hot-dip galvanized finish. |

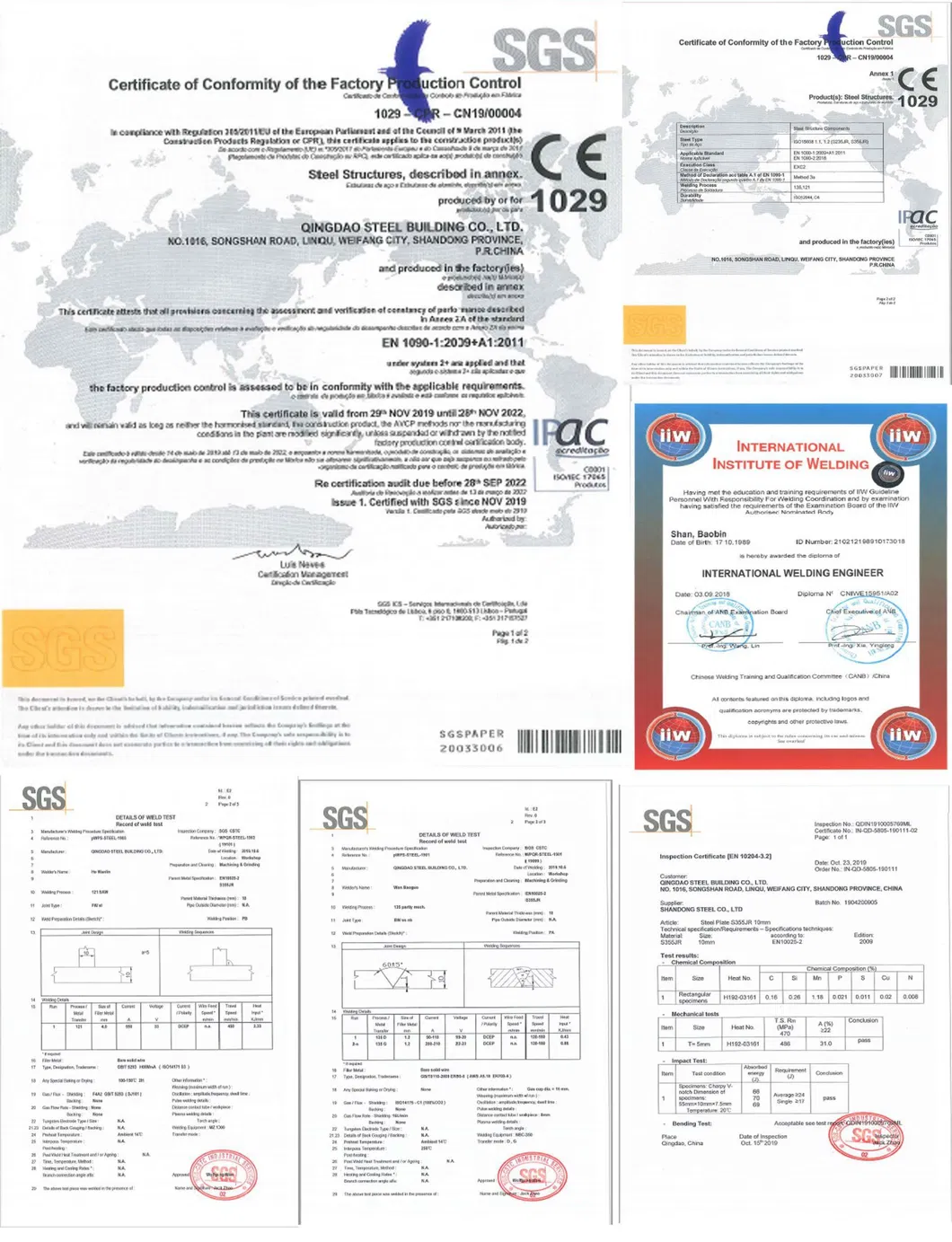

| Quality Inspections | Certified compatibility with leading international bodies including SGS, QIMA, BV, and independent third-party surveyors. |
| Integrated Crane Systems | Engineered support structures for industrial overhead cranes of 5MT, 10MT, 15MT, or higher capacities. |

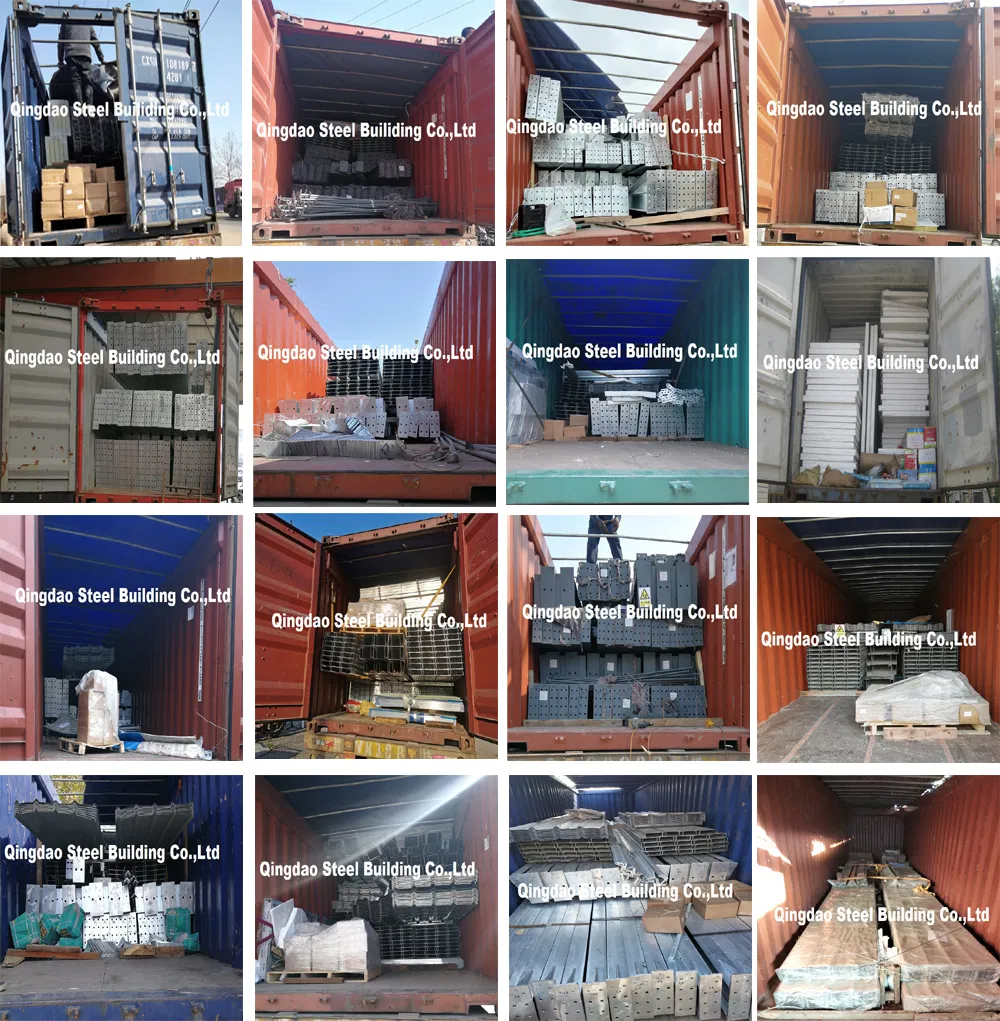

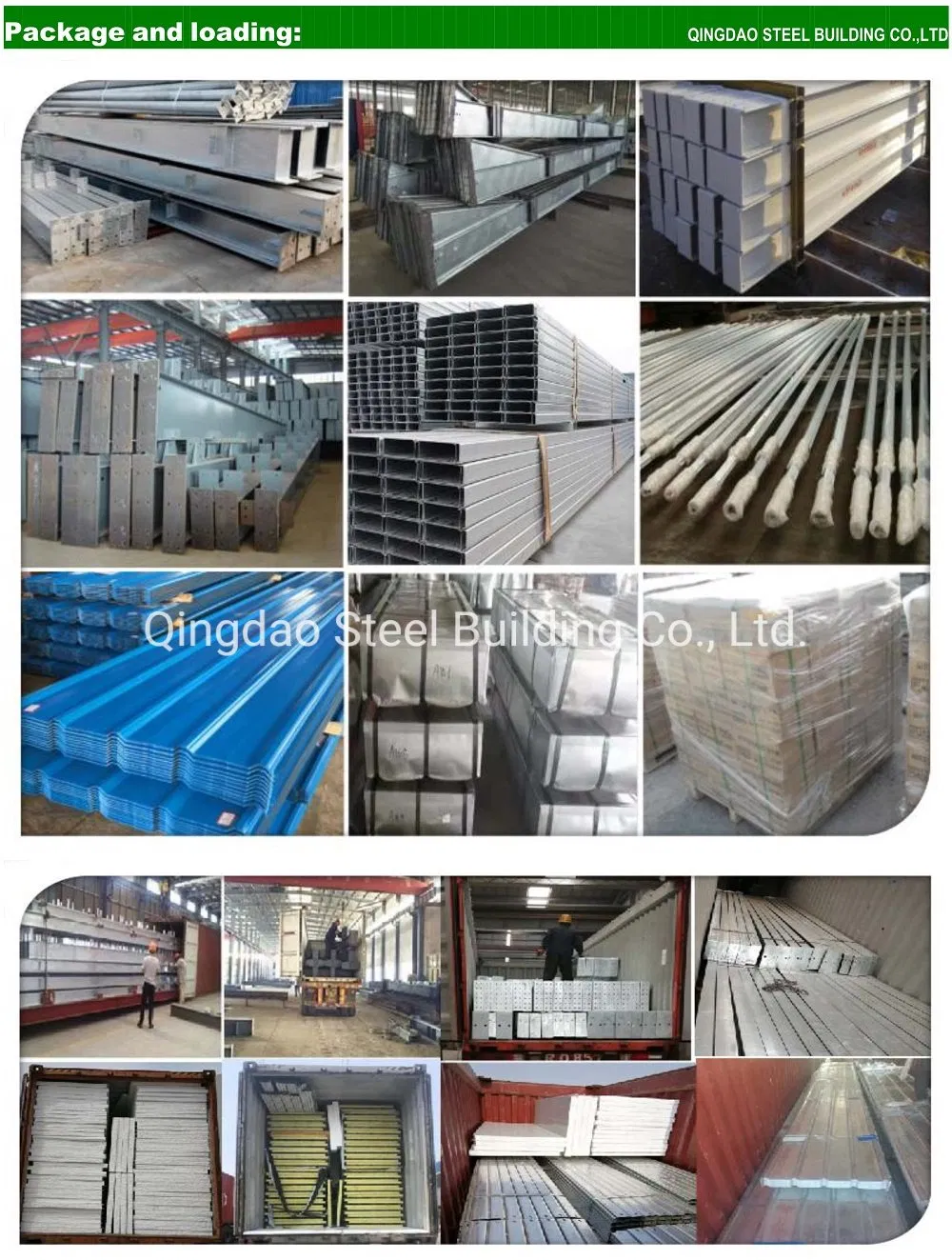

| Inbound Shipping | Primary frame loaded into specialized open-top (OT) containers; roof, cladding, and accessories loaded inside standard high-cube (HQ) containers. |
To facilitate exact load-bearing structural design computations, please prepare the following details:
When it comes to commercial style buildings, steel is the reliable way to go. In fact, studies show prefab steel is the better solution. Steel is the efficient, strong, and sturdy solution for commercial buildings. They save time on maintenance and are guaranteed to last. We offer clever designs, practical solutions, and aesthetically appealing metal commercial buildings at an affordable price.

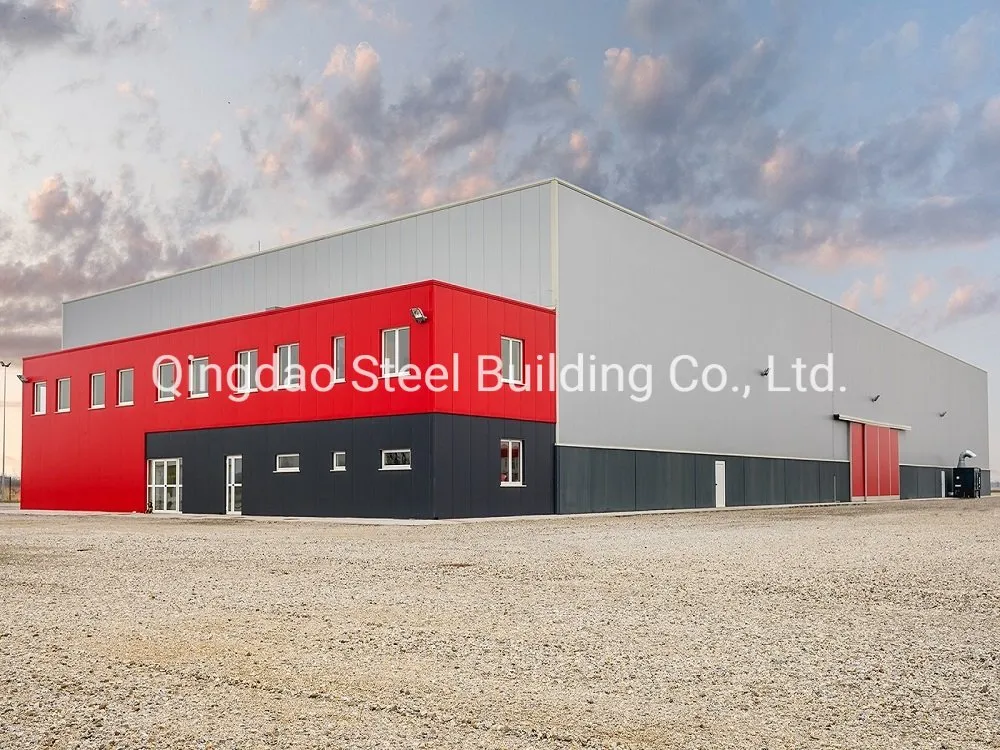

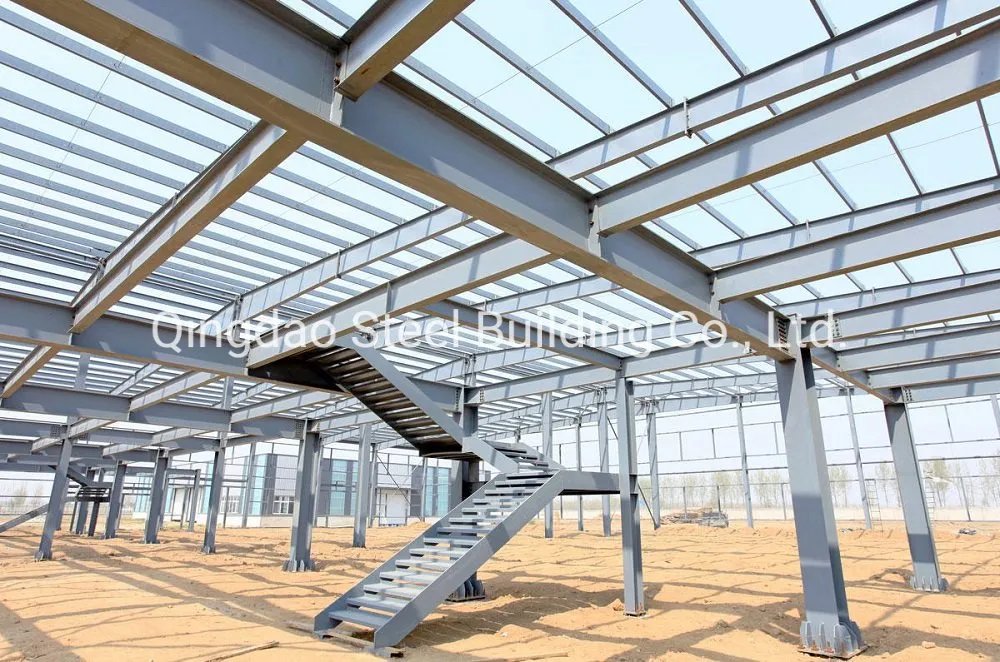

When we build a steel warehouse or industrial workshop, integrated office space is crucial. Office facilities can be built adjacent to the main building or fully enclosed inside the warehouse. These offices are designed in multi-level formats (two to three floors) to optimize floor space.

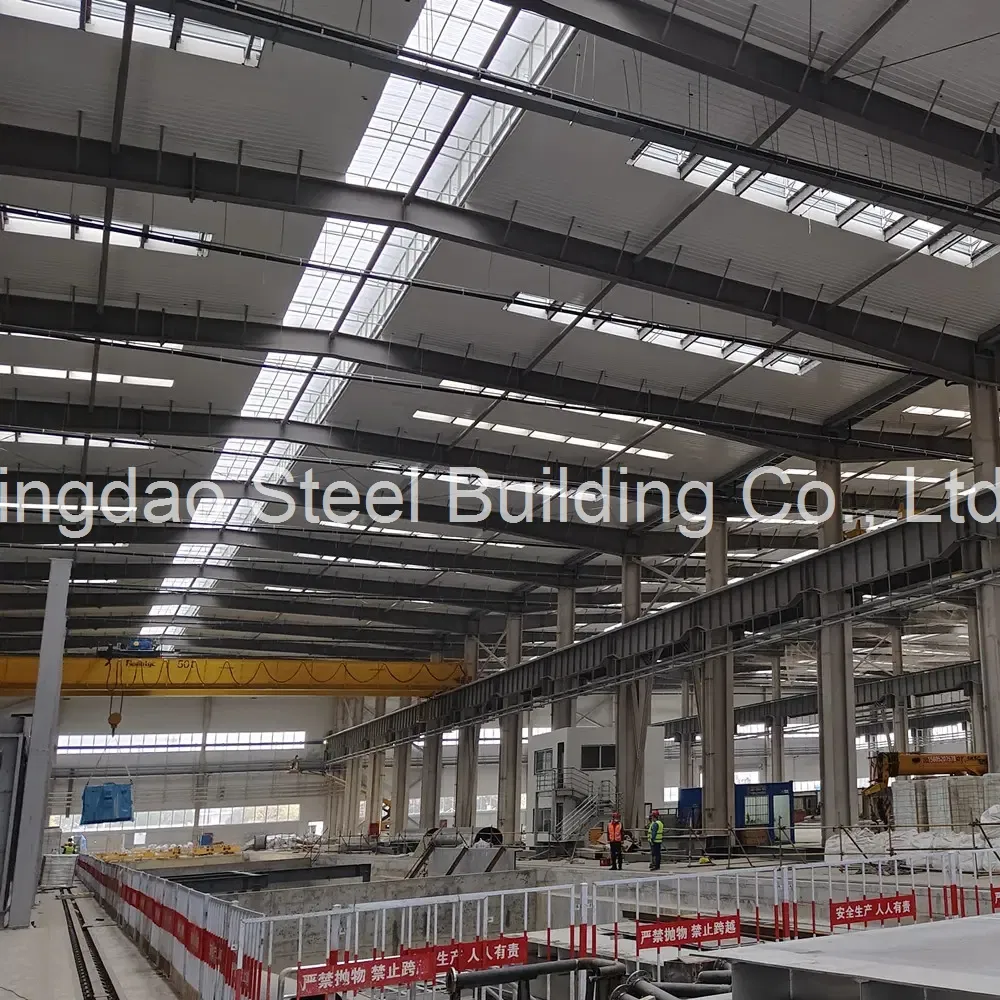

Steel Structure Workshop Design Layout

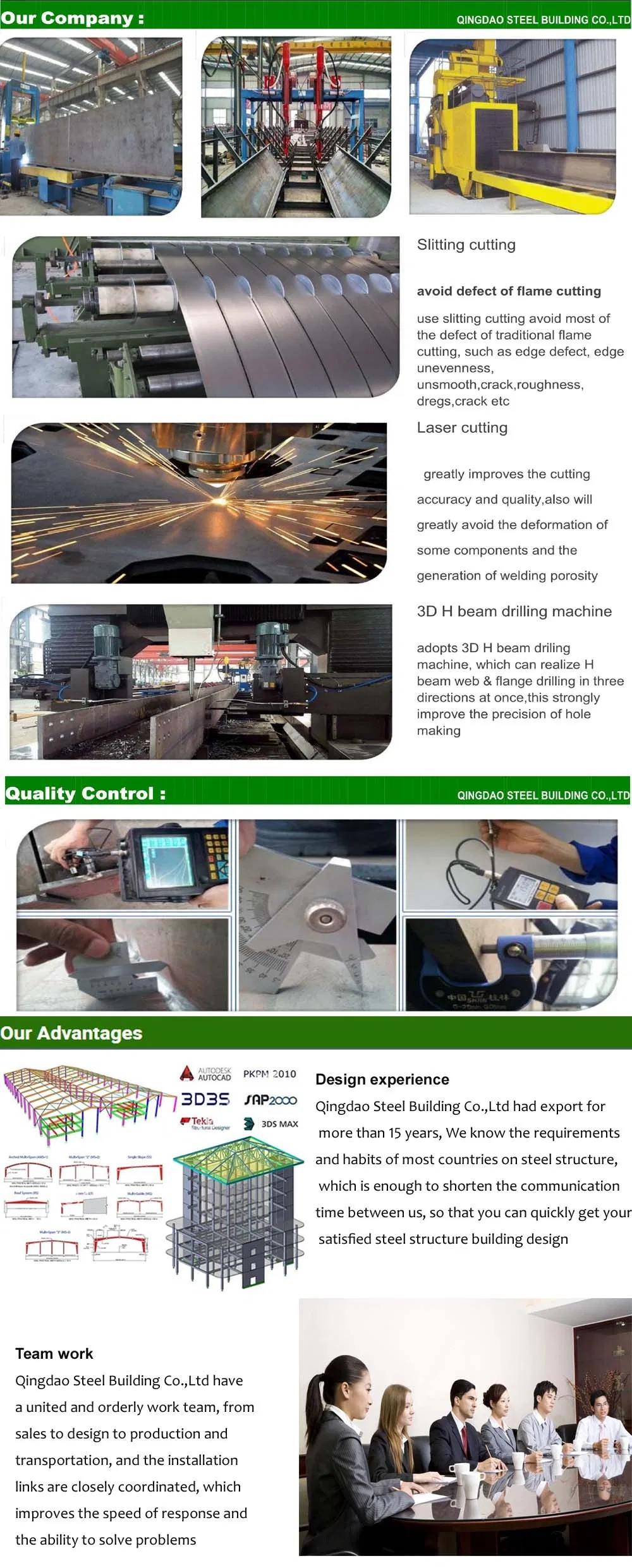

Our manufacturing complex runs complete steel structure fabrication lines. Advanced plate slitting eliminates the rough edge defects of traditional thermal cutting, and precision laser cutting significantly improves visual quality. Precision 3D H-beam CNC drilling systems guarantee correct spacing and fitment of assembly connection holes. The cold-formed C/Z structural steel profiling machinery supports a wide range of custom sections, and the heavy-duty composite sandwich panel lines ensure various dynamic wall and roof requirements are satisfied.
Our annual fabrication throughput includes: welding H-beams and structural framing up to 30,000 tons, cold-formed C & Z steel purlins up to 8,000 tons, high-density insulation sandwich panels up to 100,000 square meters, and corrugated exterior structural steel siding up to 8,000 tons.
