Light Steel Structure Luxury Prefab House Building Prefabricated Construction Peb Steel Structure Building

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Residential Wall Structure
Wall Support
Standard
AISI, BS, ASTM, JIS, DIN, GB
Steel Type
Carbon Structural Steel
Main Structure
Welded or Hot Rolled H Section Steel
Purlin
C/Z Shape Galvanized Steel
Roof/Wall Panel
PU, EPS, Rock Wool/Fiber Glass Sandwich Panel
Doors
Sliding Door or Roller Shutter
Surface Treatment
Painted or Galvanized
Drawing
Design The Drawing as Your Demand
Installation
Engineer Helps to Instruct Installation
Earthquake Resistance
Grade 10
Window Style
Sliding or Roller Window
Window Material
Plastic Steel Window, Aluminum Alloy Window
Application
Steel Structure Platform, Steel Workshop, Structural Roofing, Steel Walkway and Floor, Steel Fabricated House, Frame Part, Steel Structure Bridge
Warranty
5 Years
Type
H-Section Steel
Forming
Hot-Rolled Steel
Member
Steeltruss
Type of Steel
High-Strength Steel
Carbon Structural Steel
Q355B, Q235B
Transport Package
According to Customers' Demands
Specification
Customized
Origin
China
HS Code
7308900000
Production Capacity
2,500t/Month
Product Description

ONE-STOP Services & Customized Solutions, 10 Years+ Experience of R&D, Design, Manufacturing, Exportation, and After-Sales Support

Prefabricated Construction Peb Steel Structure Building

We are a professional manufacturer of Steel Structure Warehouses, Workshops, and Pre-engineered buildings.

Pre-engineered steel structure warehouse is steel structure built over a structural concept of primary members, secondary members, roof and wall sheeting connected to each other and various other building components.

These buildings can be provided with different structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, fascias, canopies, crane systems, insulation etc., based on the customer's requirements.

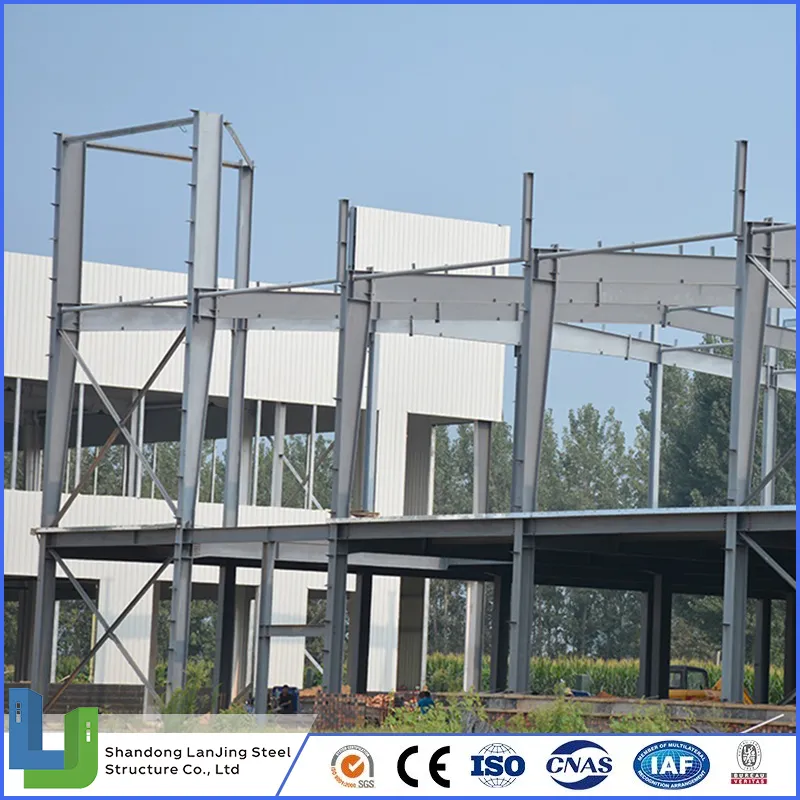

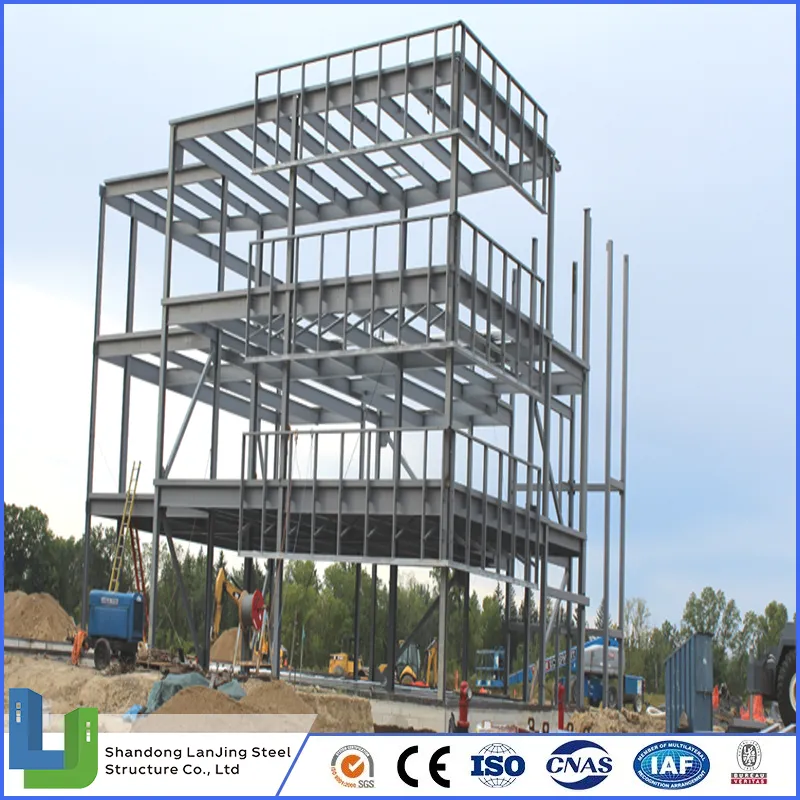

Light Steel Structure Construction Building

The pre-engineered metal building system is a building enclosure system that always includes a structural system and often includes roof and wall cladding. The structural system consists of rigid frames that are fabricated from plate steel and "cold formed" into an "H" shape through a manufacturing process. These rigid frames consist of roof beams and columns that are field bolted together. On top of and running perpendicular to these frames are roof secondary structural spanning members often referred to as purlins. The roofing system attaches to the purlins. The wall systems include wall secondary structural members called girts that also span from frame to frame. Girts support a wall cladding system (frequently metal panel).

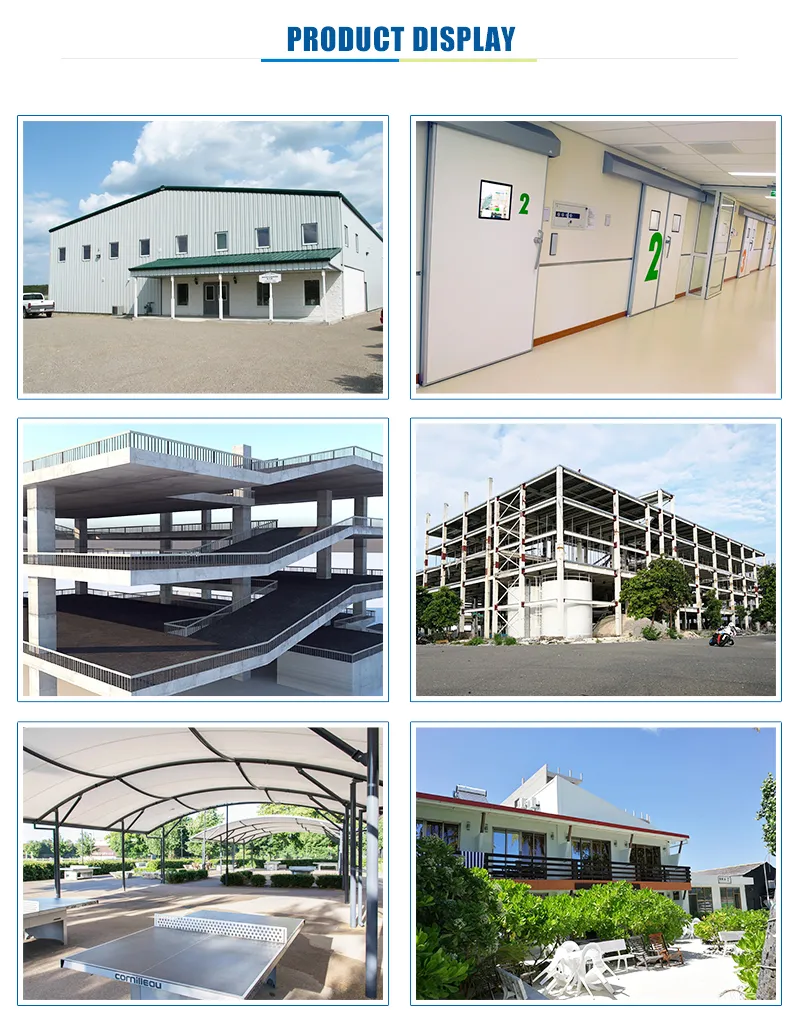

Features Prefab Steel Structure
Features Prefab Steel Structure:
  • Clear Span Construction: With steel, it's possible to do clear-span construction, which means there's no need to have load bearing walls or columns to hold up a roof - the steel frame is strong enough to do that on its own. Buildings with a clear-span design can be anywhere from 30 to 36 meters wide, with no columns to get in the way.
  • Customizable: We offer standard-size building plans for steel structure warehouses of a variety of lengths, widths and height. But as mentioned above, our prefab warehouses are customizable - if you need more space than one of our standard kits provided, our team of designers can draft the plans for you.
  • Affordable: Prefab steel warehouses are among the most affordable buildings to erect. Because all of the building materials are prefabricated, there's no delay at the building site. Each part of the frame fits together perfectly, as do the steel panels forming the walls and ceiling.
  • Easy Construction: The materials that go into prefabricated steel warehouse buildings are quick to form, cut and weld, so all building materials can be delivered to the construction site within just a few weeks, which also speeds up the construction time.
  • Low Maintenance: Steel is not affected by rot, mold or mildew. There's no need to call out a pest control person every year to spray for them - termites find steel unappetizing. Commercial grade, galvanized steel also does not rust. Our steel prefabricated warehouse buildings for sale are guaranteed to last for 25 years.
Technical Specifications
Steel Structure Building Technical Specifications
Main steel structure Q235, Q355B steel, Welded H type, I type, Box type frames
Surface Treatment Sa2.5 grade shot blasting, Alkyd painting, or Epoxy zinc-rich painting, or Galvanization according to customers' requirements
Purlins C section, Z section profiles, Electro-galvanized, 40g/m2, 60g/m2, 90g/m2, 275g/m2, according to customers' requirements
Bracing system Including Cross brace, Column brace, Knee brace, Batter brace, Tie bar etc.
Wall & Roof cladding system Single corrugated galvanized metal sheet, or Insulated sandwich panels, such as Rockwool, Fiberglass, EPS, PU etc.
Doors Electric Roller shutter door, or Sliding door, or Single open / Double open door
Windows UPVC / Aluminum windows
Rainspout system Galvanized gutter, UPVC down pipes
Fittings & Accessories Anchor bolt, High-strength bolt, Screw, Trip plate, Sealing glue etc.
Detailed Photos

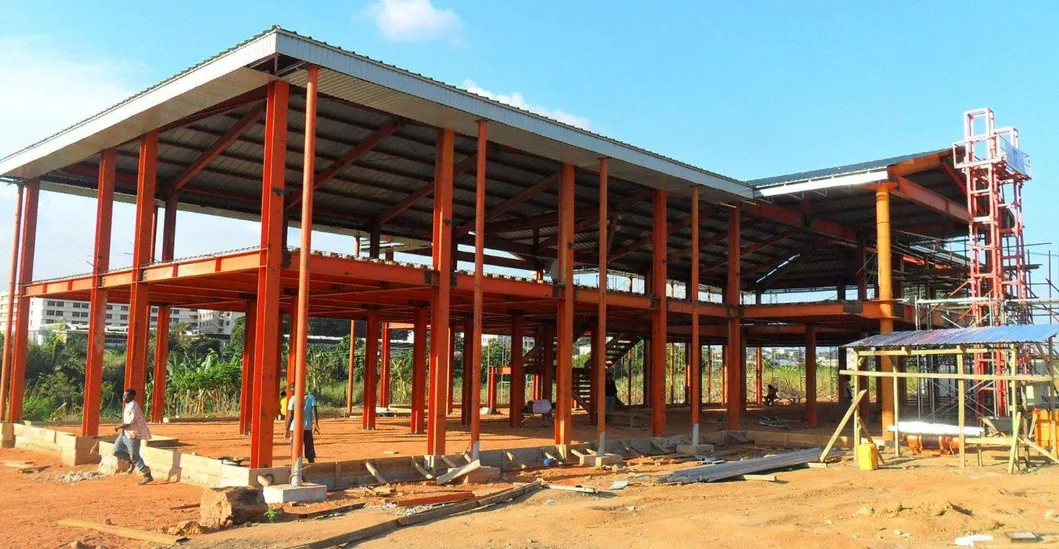

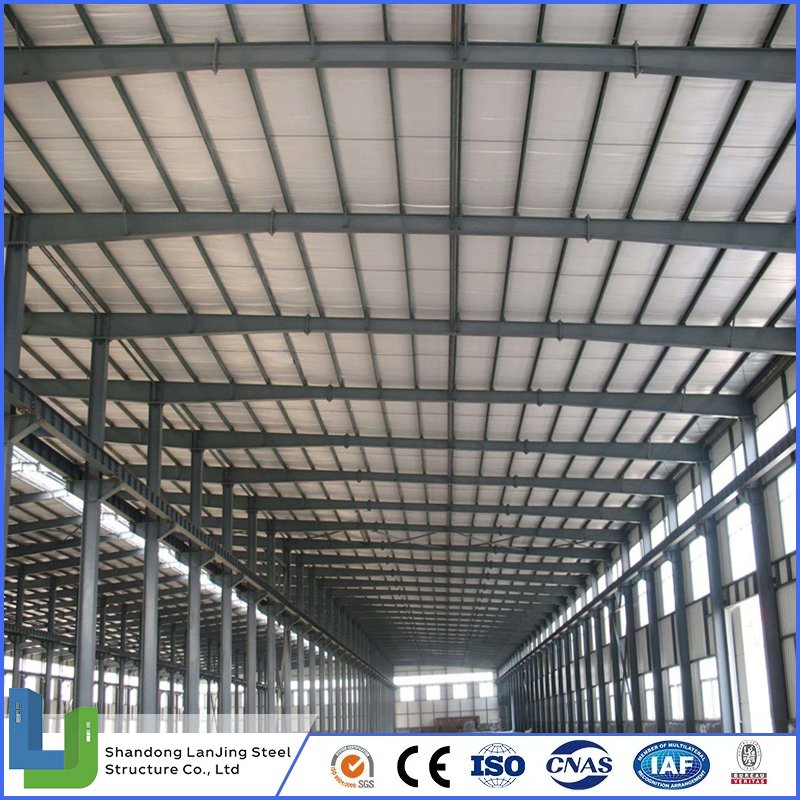

Detailed Steel Structure Frame
Characteristics:
  • Wide span: single span or multiple spans, the max span is 36m without middle column
  • Low cost and maintenance: unit price range from USD35/m2 to USD70/m2 according to customers' request
  • Fast construction and easy installation: time saving and labor saving
  • Long using lifespan: up to 50 years
  • Nice appearance
  • Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.
Product Application

Our steel structure buildings are used for diverse applications such as Warehouse; Workshop; Factory; Cold storage building; High-rise building; Shopping mall; Power plants; Distribution centers; Pedestrian bridge; Steel structure hotels; Prefabricated public schools; Sports arenas & sports hall; Car parking center; Airplane hangars & aviation hangars; Church building & Community center; Poultry farm; Agricultural building & barns; Storage shed; Self-storage building; Green house; Garage; Commercial building; Industrial building and many more.

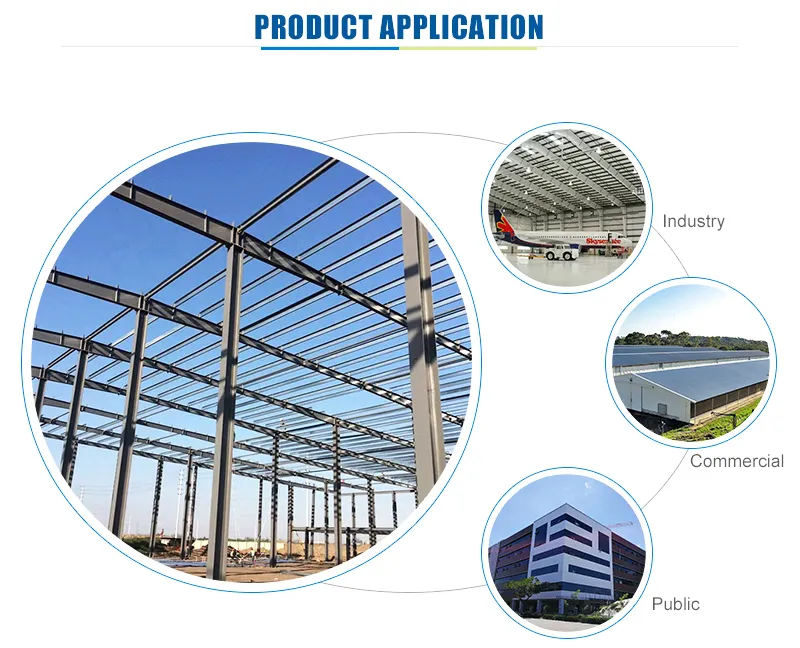

Steel Structure Diverse Applications

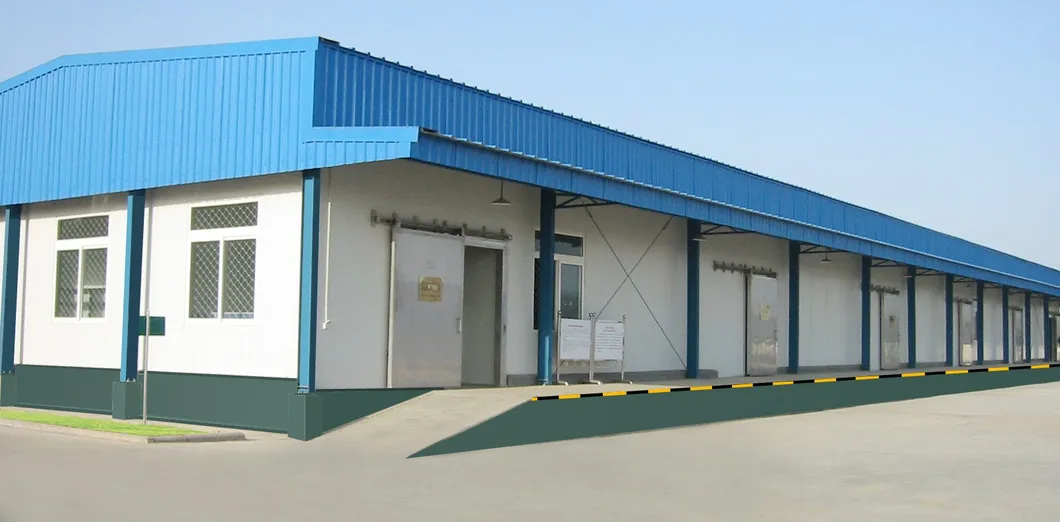

Industrial Building Steel Structure

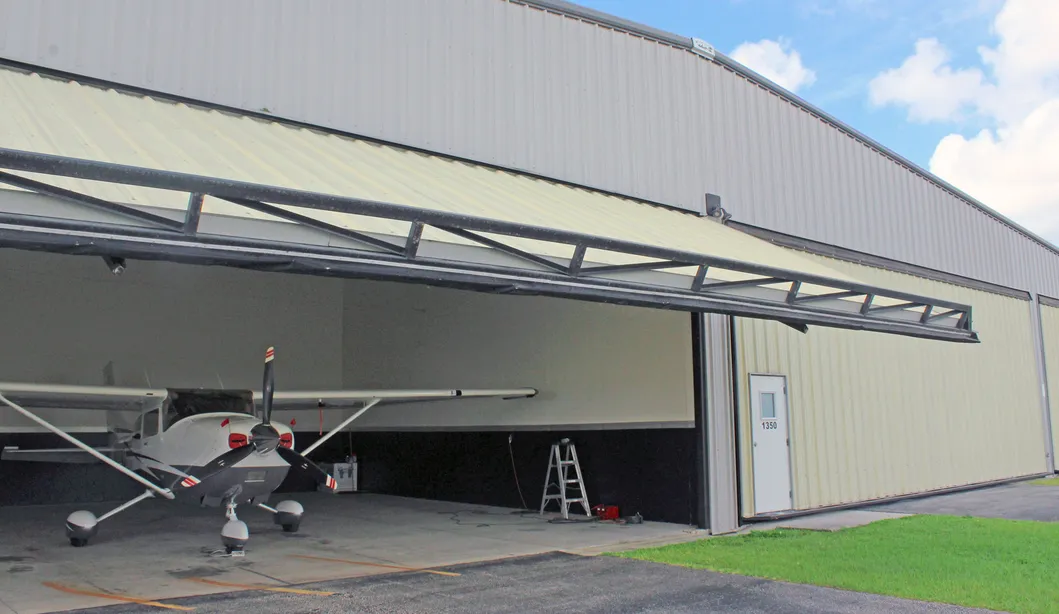

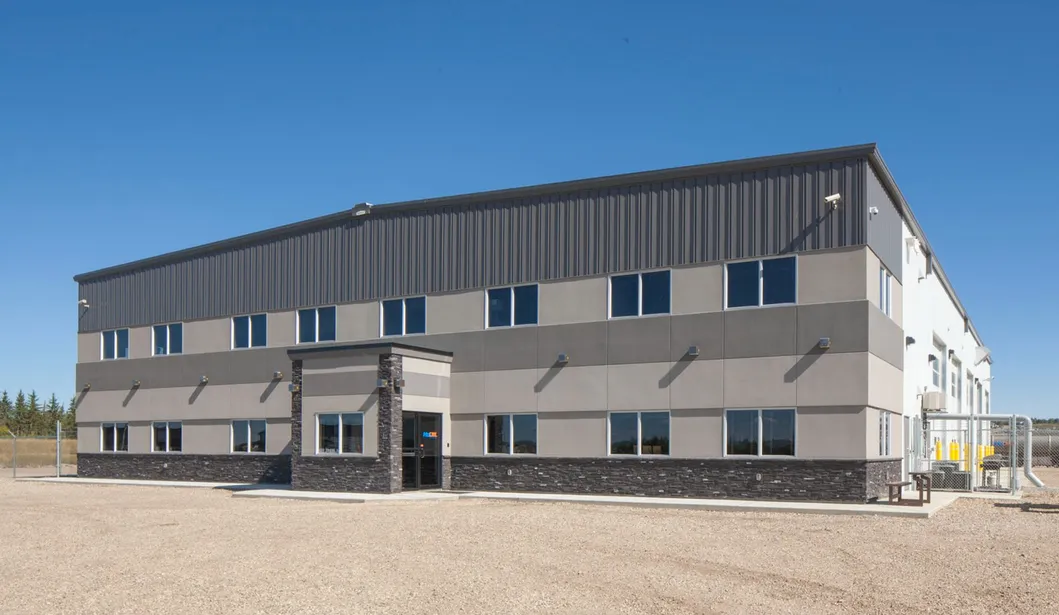

Prefab Steel Structure Workshop construction Steel Structure Hangar
Customer Rendering Display
Steel Structure Customer Rendering Display
Packaging & Shipping

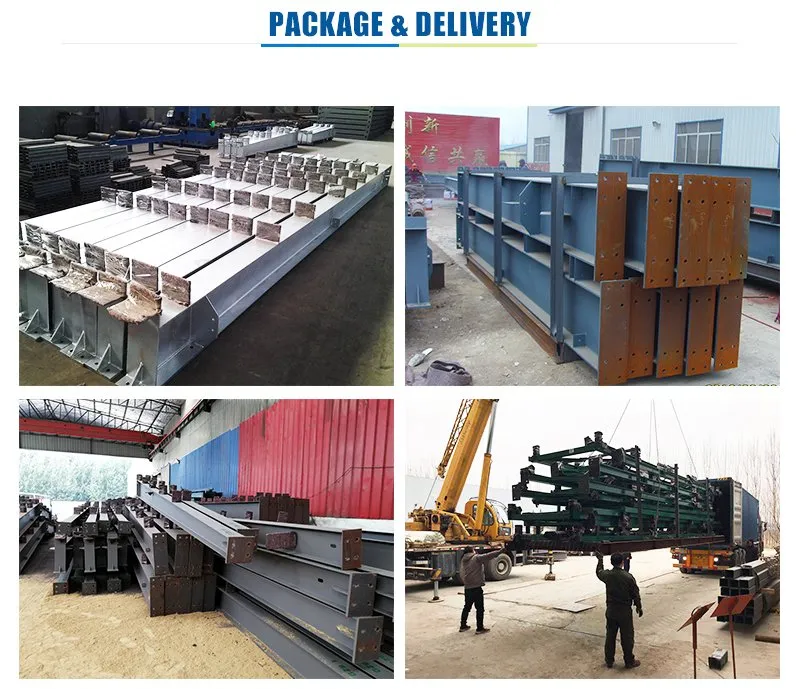

Steel Structure Packaging & Shipping
Manufacturing Capabilities
Steel Structure Manufacturing Process

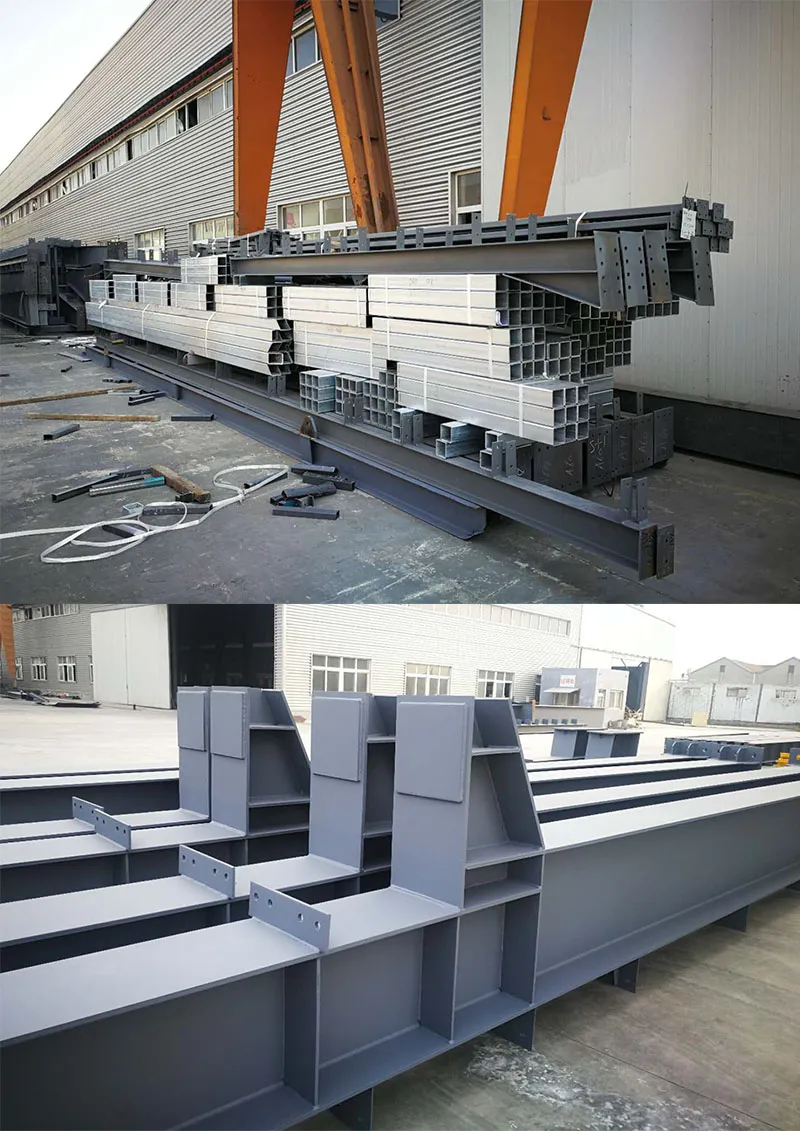

Steel Structure Factory Production Line

Our brand is a trusted and tested provider of structural steel systems, container houses, and prefab houses. As experts in steel structure building systems, we offer comprehensive ONE-STOP services, delivering customized solutions that encompass Consultation, R&D, Design, Manufacturing, Installation, Overseas project supervision, and After-sales support.

We specialize in the creation of high-quality Steel Structure Warehouses, Workshops, High-rise steel frame buildings, and Container Houses for labor camps, worker dormitories, site offices, shower containers, toilet containers, and more. We provide our time-tested steel buildings to clients in the sectors of Oil & Gas, Mining, Energy, Infrastructure, and Construction projects. Our reputation is built upon Professionalism, Reliability, and exceptional Service.

Backed by strong technical strength and comprehensive product lines, our dedicated teams possess extensive knowledge in prefabricated steel buildings. We have successfully completed 100+ projects in more than 30 countries, building long-lasting partnerships with international companies, organizations, and governmental clients.

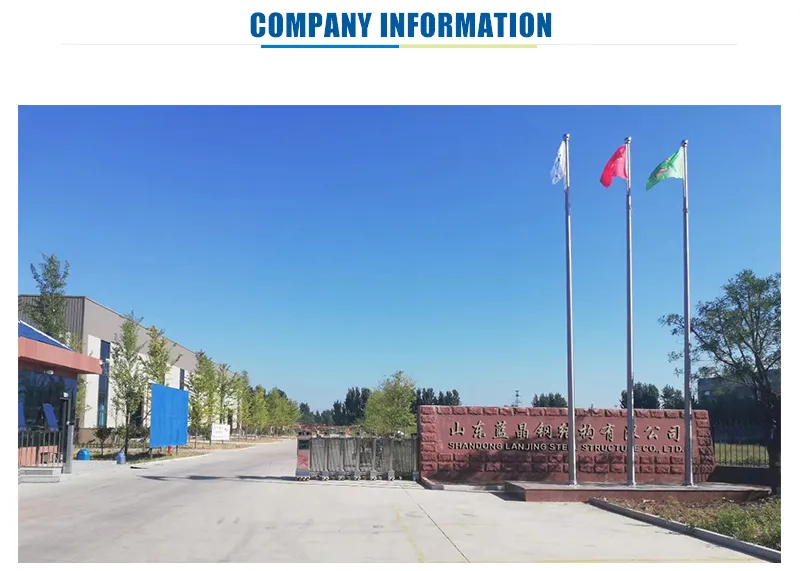

Factory Overview and Advanced Production Facility
Certifications
Steel Structure Quality and Management Certifications
Frequently Asked Questions
Can we accept custom services and personalized design?
Yes, our professional engineering team can create customized architectural drawings following specific requirements and site conditions.
What are the available payment methods?
We accept standard payment methods including T/T (Telegraphic Transfer) and irrevocable L/C (Letter of Credit) at sight.
How is the installation handled?
Assembly is fast and straightforward. We provide detailed installation videos, architectural layout instructions, and manuals. Technical engineers can also be dispatched to guide on-site installation when requested.
What is the standard delivery timeframe?
The standard delivery timeframe is typically within 10 to 15 days after receiving the advance deposit.
What is the expected lifespan of these steel buildings?
Our heavy-duty galvanized structural steel buildings are engineered with superior anti-corrosion protection and possess a service life of up to 50 years.
Are these structural steel frames resistant to extreme weather?
Absolutely. The structural system is designed to meet rigid international building code wind loads, heavy snow loads, and exhibits seismic structural integrity up to Grade 10 earthquake resistance.
