We have established our own installation team, which can go to the site to provide installation assistance at any time according to customer’s requirements. Sofar, different kinds of steel buildings have been completed under our help.
Main Product: Customized prefabricated steel structure hangar /workshop /warehouse /Factory /Shopping Mall/ Metal Shed cold storage/Office building/Wedding Halls//school/stadium /Barn /Steel Frame building
Product Description

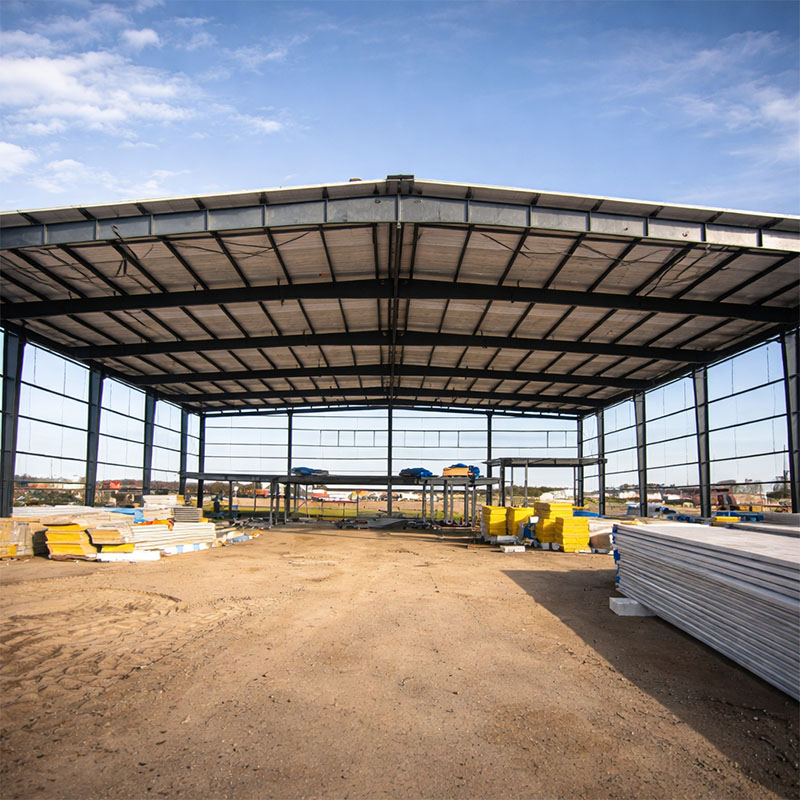

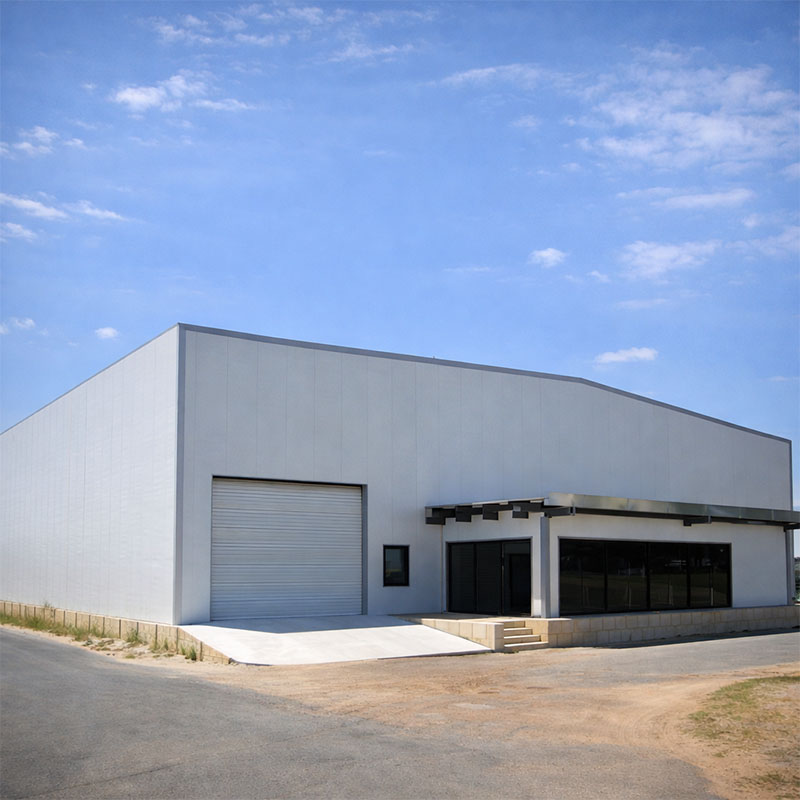

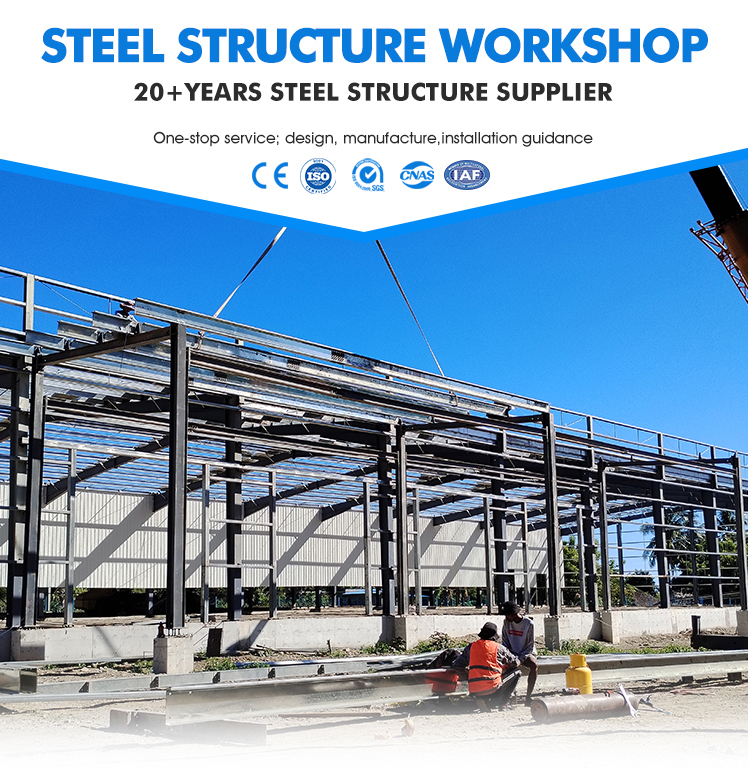

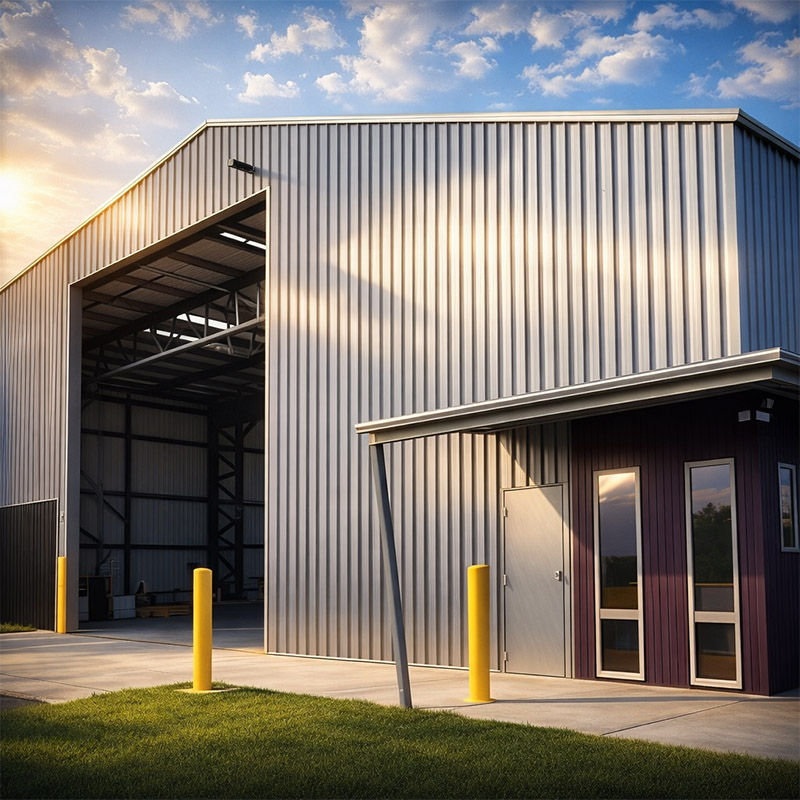

Steel workshops are the backbone of modern industrial operations, combining robust construction with versatile functionality. These facilities are designed to meet the high demands of various sectors, providing a secure and efficient space for manufacturing, storage, and other critical processes. Constructed primarily from high-grade steel, these workshops offer unparalleled durability and adaptability, which are crucial for the dynamic needs of today’s industries.

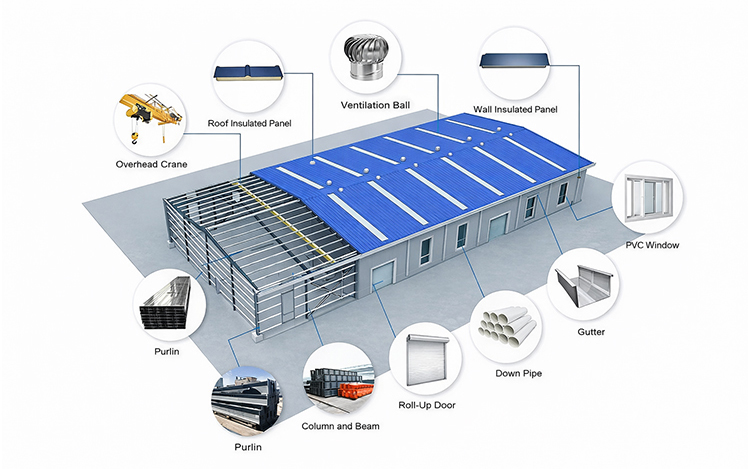

| Structure |
Part |
Specification |
| Main Structure |
Frame Column and Beam |
Q355B H/I Section & As drawings |
| Welding |
Automatic Submerged Arc Welding |
| Rust Removing |
Shot Blasting |
| Surface Processing |
Coating or Galvanized |
| High Strength Bolt |
Grade 10.9 |
| Secondary Structure |
Purlin |
C/Z Purlin Size from C120-C320, Z100~Z300 |
| Angle Brace |
Q235B L-Steel |
| Cross Brace/X Brace |
Q235B Round Pipe |
| Tie Bar |
Q235B Round Bar |
| Roof System |
Roofing Material |
Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm |
| Skylight Panel |
1.2mm FRP |
| Gutter |
Steel Gutter Galvanized/Coated 2.0mm-3.0mm |
| Rainspout/Down Pipe |
PVC Pipe |
| Wall System |
Wall Material |
Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm |
| Ventilator |
Ventilator Type |
Unpowered Axial-Flow Ventilator or Monitor Roof |
| Door/Window |
Custom Doors |
Electric Rolling/Sliding/Aluminum/PVC (Customizable) |
Advantages
01Unobstructed interior space: A single-span steel workshop provides clear interior space without intermediate columns, making it ideal for storage, assembly lines, or light machinery.
02Lower material cost: Because the structure uses thin-walled, cold-formed members, the cost of a light steel workshop is significantly lower than that of heavy steel alternatives.
03Faster installation: Prefabricated members are delivered ready for assembly, minimizing on-site work. A modular light steel workshop can be erected in weeks rather than months.
04Energy efficiency: The lightweight structure supports insulated panels easily, allowing for an energy-efficient light steel workshop with reduced heating and cooling needs.
05Flexibility and relocation: Some light steel workshops can even be dismantled and relocated, offering flexibility for businesses that may need to expand or change location.

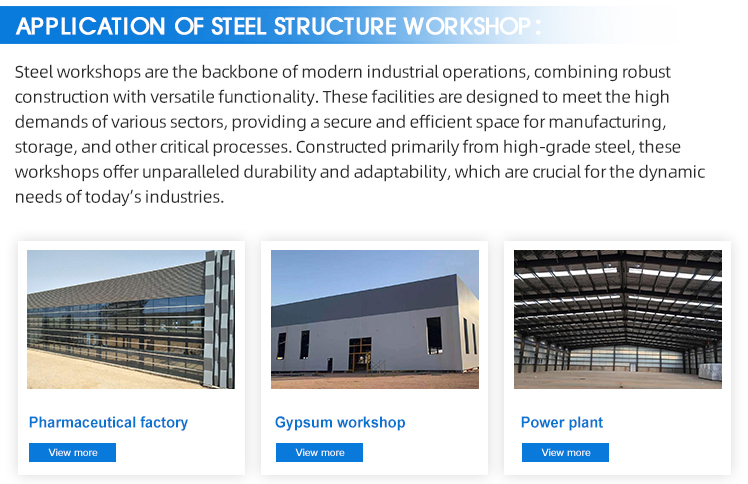

Application of Steel Structure Workshop
Steel structure workshops are commonly applied in industries such as manufacturing, machinery processing, automobile production, logistics and warehousing, power plants, chemical plants, and agricultural processing. These workshops can be designed as single-span, multi-span, or multi-story structures to meet different production and operational requirements.

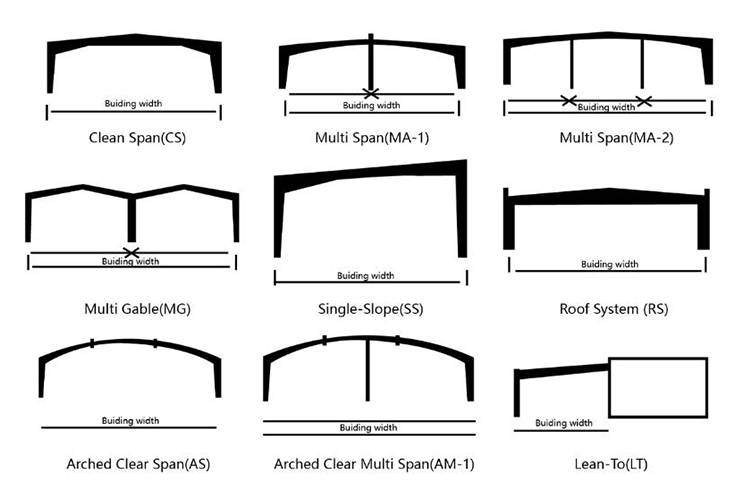

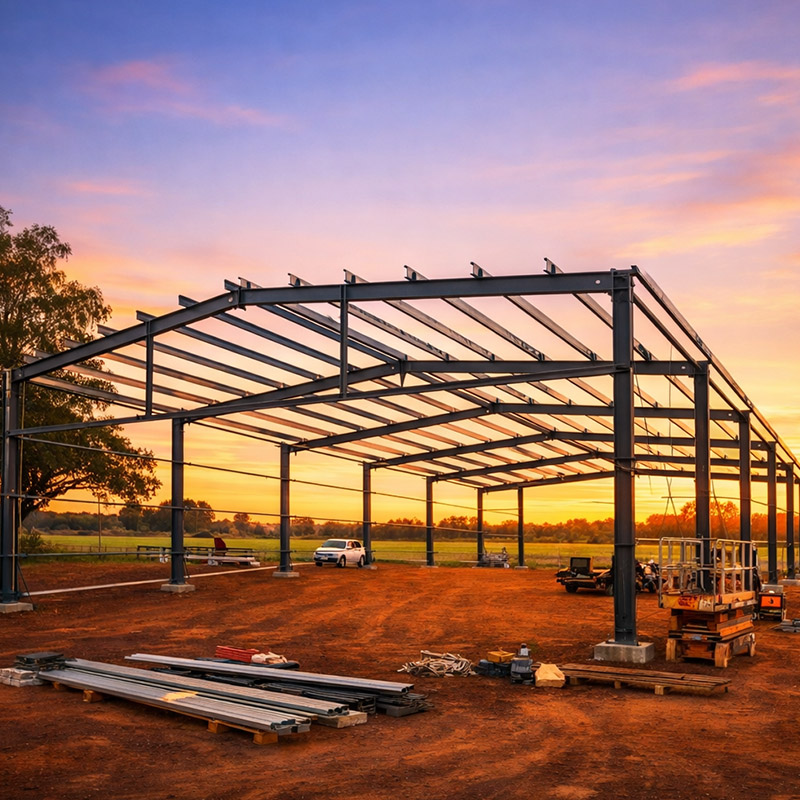

Primary Framing
We provide custom-designed primary steel frames—including beams, columns, and trusses—manufactured with shot blasting, painting, or galvanizing for corrosion resistance, and constructed to meet international standards including ISO and GB.

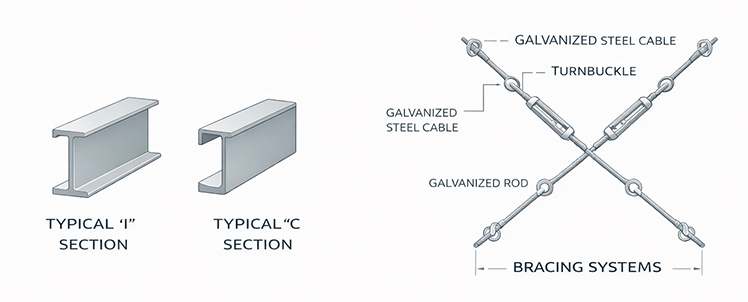

Secondary Framing
Our secondary structural members, including galvanized steel purlins (meeting GB/T 2518-2008, Q235B/Q345B grades, 1.8-3.0mm thickness) and round/angle steel column bracing, connect the main frame to support wall and roof cladding while enhancing the building's stability, stiffness, and resistance to longitudinal loads such as wind and earthquakes.

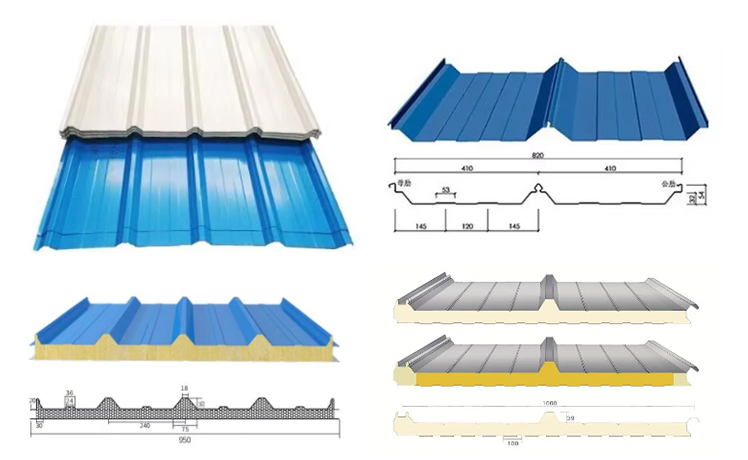

Roof and Wall Cladding System
A full range of customizable roof and wall steel sheets, insulated sandwich panels, and accessories are available, renowned for their durability, aesthetic appeal, and excellent thermal performance for diverse construction needs.

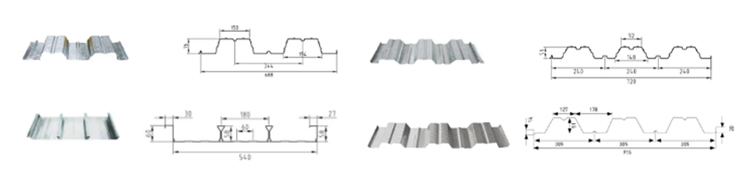

Steel Decking Floor

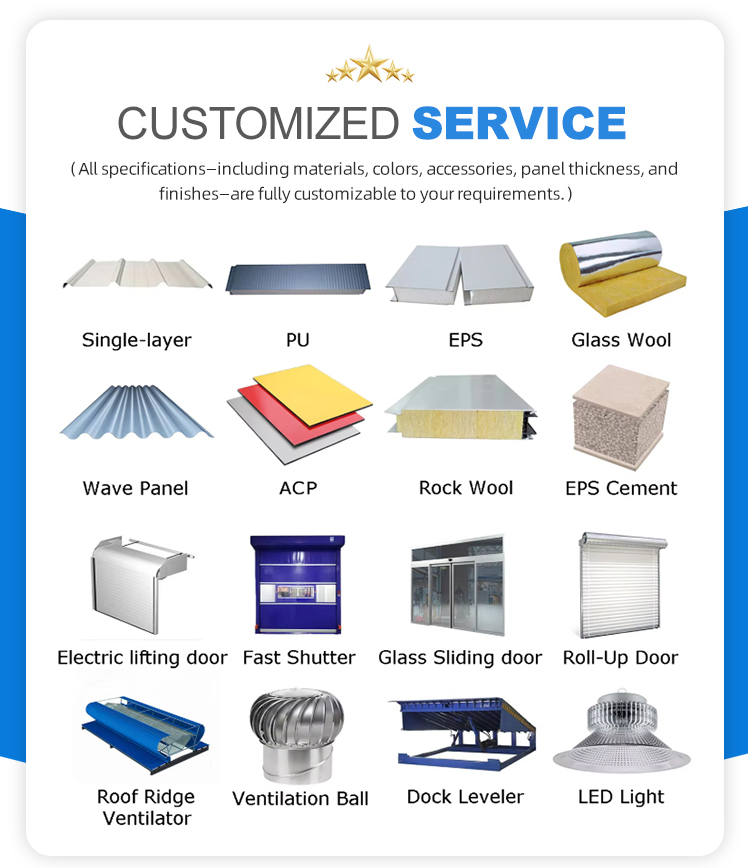

All specifications—including materials, colors, accessories, panel thickness, and finishes—are fully customizable to your requirements.
FAQ
1. What is the main advantage of a steel structure workshop?
Its biggest advantages are speed, strength, and adaptability. Prefabricated components ensure quick assembly, while the steel frame provides long-lasting structural stability.
2. Can a steel workshop include overhead cranes?
Yes. Most industrial steel workshops are designed to integrate overhead cranes for heavy lifting, ensuring smooth material handling during production.
3. How long does it take to install a steel structure workshop?
Construction typically takes 6–10 weeks, depending on the size and complexity of the project.
4. What is the expected lifespan of a steel workshop?
With proper corrosion protection and periodic maintenance, it can last over 50 years.
5. Are steel structure workshops insulated?
They can be. Many clients choose sandwich panels or glass wool insulation to maintain comfortable indoor temperatures and reduce energy costs.
6. Can the building be relocated or expanded later?
Yes. The modular bolted connections make it easy to relocate or extend the workshop without affecting the structure’s integrity.
